The door handle is usually a multiple of 32 mm, the common size is 96 mm, there are many larger models, such as 128 mm and 192 mm. Use a tape measure to measure the mounting hole distance of the handle, use the handle to draw the door panel and measure the installation position on the wardrobe or cabinet door.

Select a bit of appropriate size, insert an electric drill, and use the bit to drill screw mounting holes. Hold the handle with the outer hand, and transfer the screws from the inside to the outside on the inside. Align the screws with the mounting holes of the handle and tighten with a screwdriver.

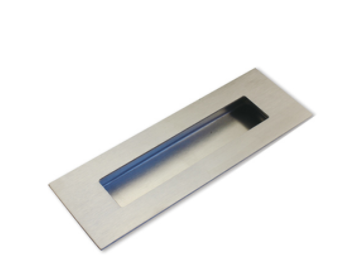

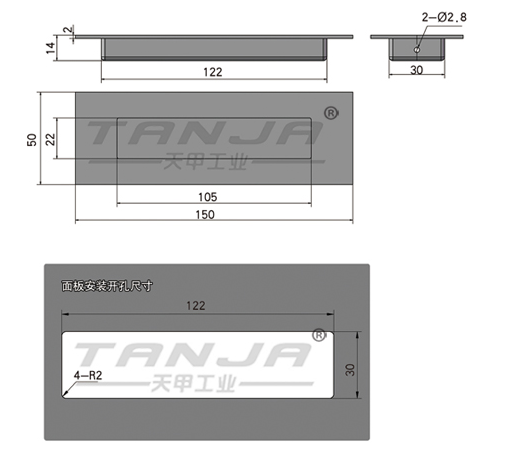

M35B-Stainless steel door

Using SUS304 material

Stainless steel hidden handle, different sizes and shapes are optional, mounting holes can be hidden and exposed

Uses: emergency doors, kitchen doors, various cabinets, measuring equipment
