There are several adjustment methods. One is to adjust the coverage distance. Turn the screw to the right, and the door coverage distance will become smaller. If the screw turns to the left, the coverage distance will become larger. The second type is depth adjustment, which is continuous adjustment directly through the eccentric screw. The third type is height adjustment. When there is a problem with the hinge and the height of the cabinet does not match, the height can be adjusted accurately by adjusting the base of the hinge.

The last one is spring force adjustment. Some hinges need to adjust the spring force of the door in addition to the basic adjustment operation. Generally, the maximum force required by the door is used as the base point. When the adjustment screw is rotated once, the spring force can be reduced. , The spring force becomes weaker, which can reduce noise.

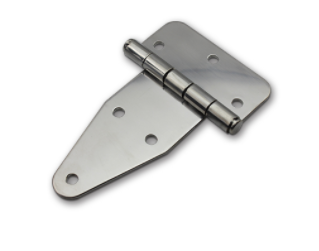

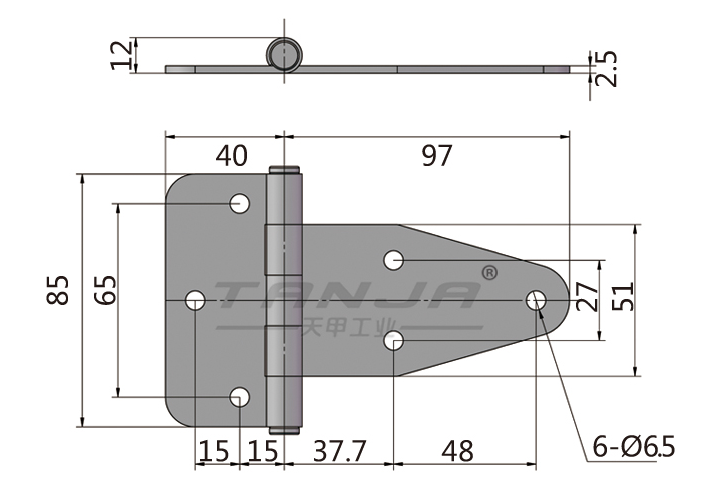

K39-Heavy hinge

Using SUS304 material

T-shaped design, porous installation, firmer

Uses: van, medium-sized door
