First prepare tools, tape measure, measuring ruler, drawing hand drill tool, fixed screwdriver. Measure the positioning line with a tape measure, and then use the hand drill tool to open the hinge cup mounting hole on the door panel, the door is 35 mm, and the depth of the hole is 12 mm.

Insert the hinge into the hinge cup hole and fix it with screws. After inserting and fixing, open the hinge, insert and align the side plates, and fix the base with screws. After the installation is complete, open and close the installation to execute the test results.

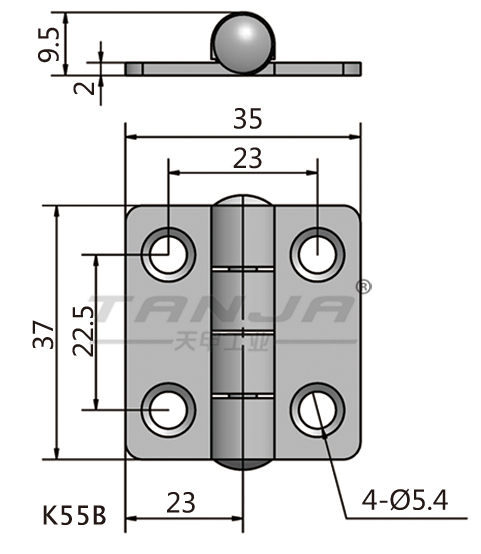

K55-Chassis hinge

Using SUS304 material

Flat hinge, opening angle 270 °

Uses: wooden gate, tool box, server cabinet, communication equipment
