Flexible & Damping Toggle Latch

A95B

Flexible & Damping Toggle Latch

Polishing

application：Small &medium-sized case cover,mechanical equipment,vehicles

catalogue CAD data

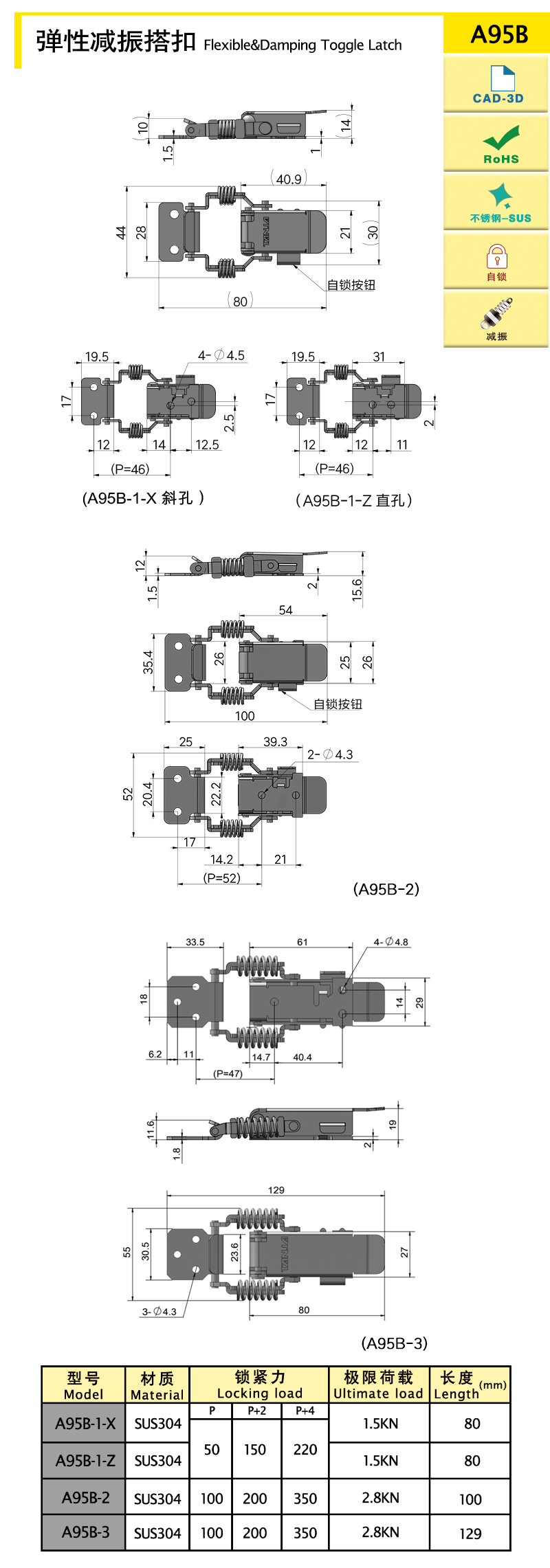

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）
A95B-1-X	Damping,Self lock	80	SUS304	38.6	220	1500
A95B-1-Z	Damping,Self lock	80	SUS304	38.61	220	1500
A95B-2	Damping,Self lock	100	SUS304	70.21	350	2800
A95B-3	Damping,Self lock	129	SUS304	/	350	2800

characteristic

The unique self-locking mechanism design of the toggle latch prevents the latch from bouncing during use, which is convenient and safe to use

Available services

Compression spring has elastic prepressing and shock absorption function

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
