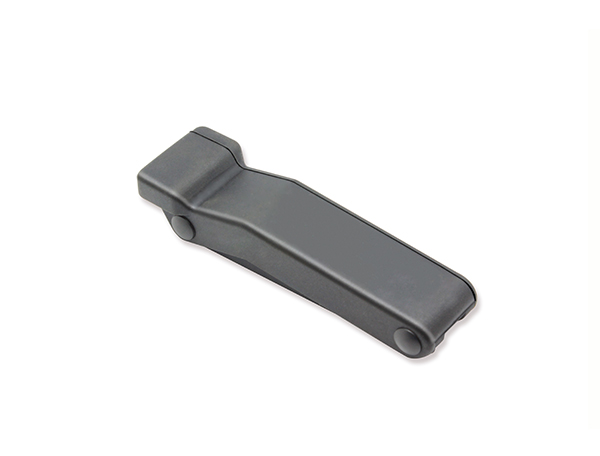

Concealed & Flexible Toggle Latch

A150

Concealed & Flexible Toggle Latch

application:Turnover box ,Engin hood

catalogue CAD data

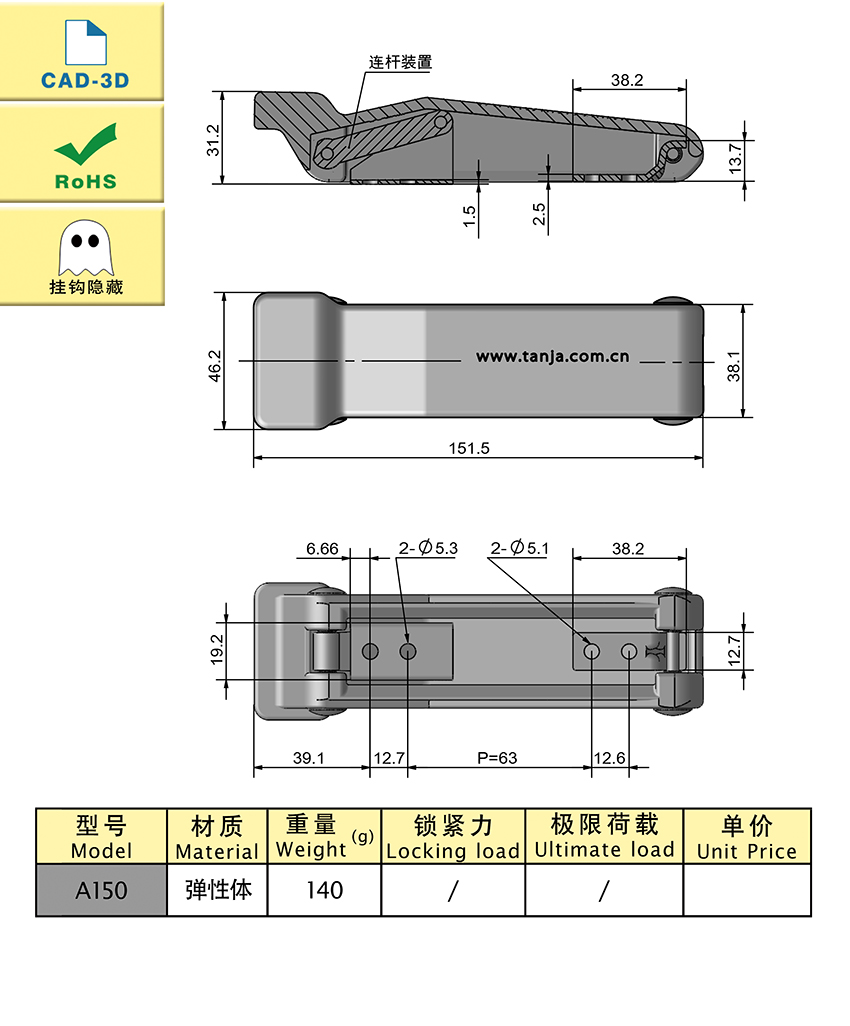

Product size diagram

Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A150 Concealed 151.5 Elastomer 140 100 460
characteristic
Concealed toggle latch,better visual effects,save installation space
Available services

Latch body made of high quality elastomer to reduce vibtation & apply prepressing.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
