Concealed & Adjustable Toggle Latch

A306B

Concealed & Adjustable Toggle Latch

SUS304

application：Vehicles/Medical equipment/Nuclear power engineering etc

catalogue CAD data

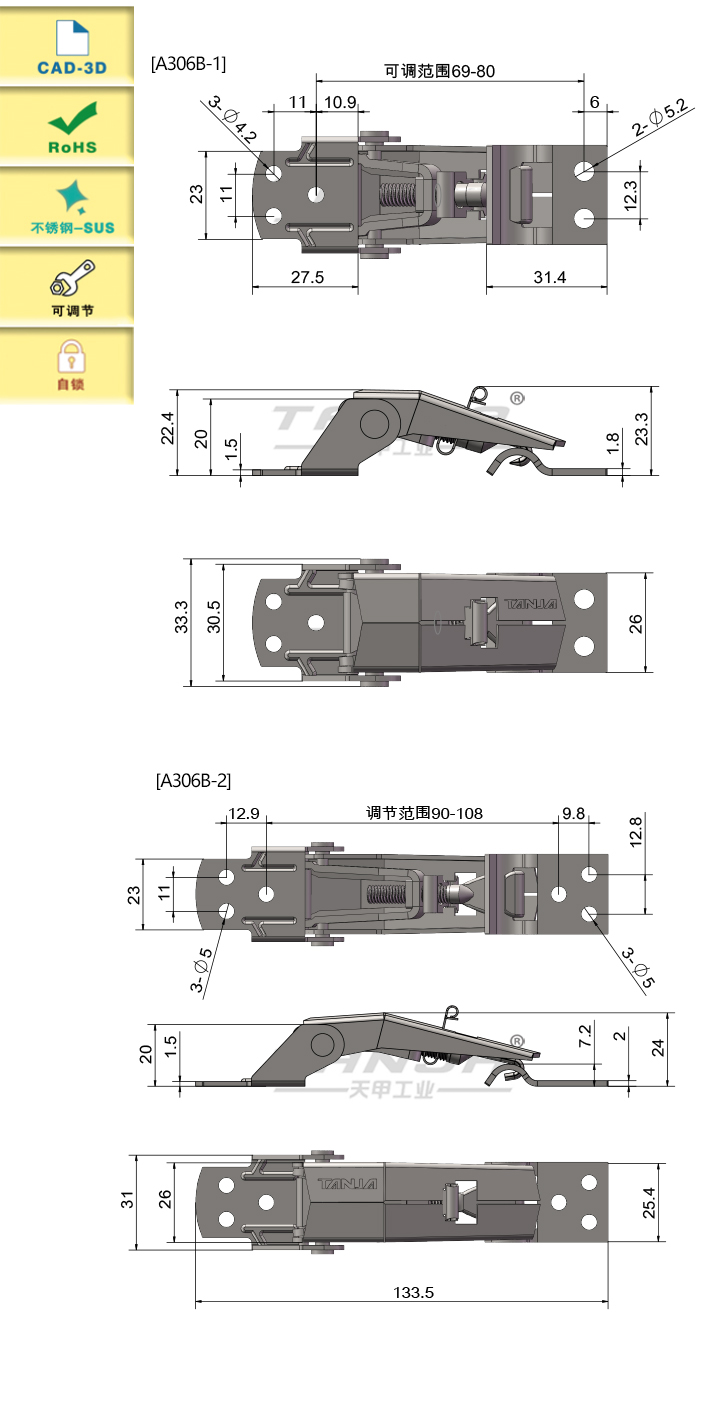

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）	3D DRAWINGS
A306B-1	Adjustable,Self lock	93-101	SUS304	69.5	600	6000
A306B-2	Adjustable,Self lock	129-147	SUS304	94.4	1000	6000

characteristic

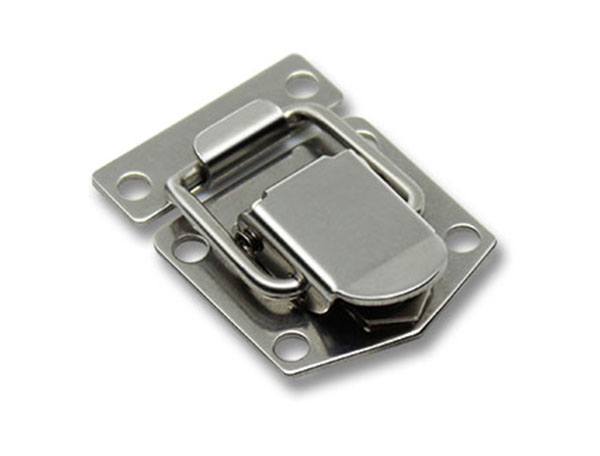

Concealed toggle latch can provide the ability to conceal all mounting hardware and latching functions under the handle. Under-center mechanism allows secure off-plane latching

self-locking design, can prevent accidental opening,covenient and safe,Simple and elegant appearance

Available services

Adjustable, U-shackle can adjust the mounting distance and tightness.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
