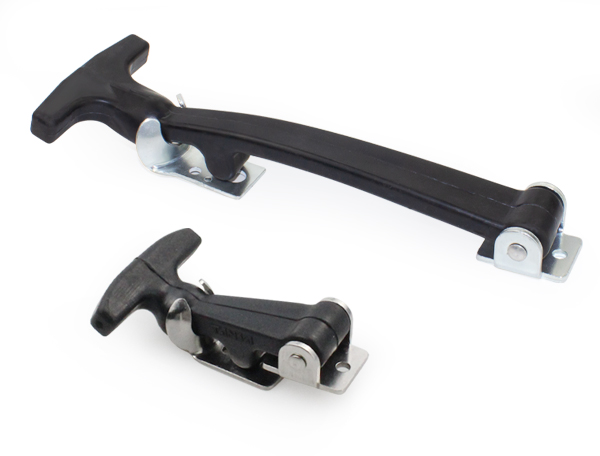

Flexible & Damping Toggle Latch

A126

Flexible & Damping Toggle Latch

application：Hood/vibrating machinery

catalogue CAD data

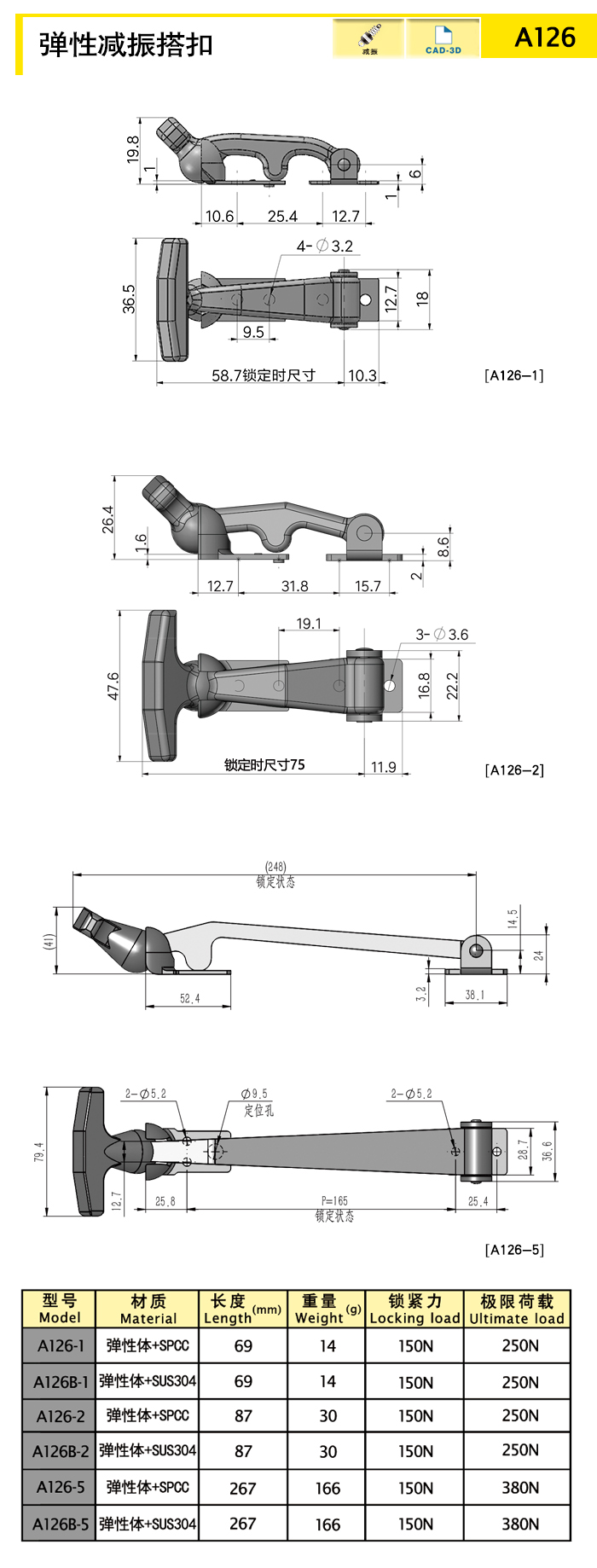

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）
A126-1	Damping	69	Elastomer	14	150	250
A126B-1	Damping	69	Elastomer	14	150	250
A126-2	Damping	87	Elastomer	30	150	250
A126B-2	Damping	87	Elastomer	30	150	250
A126-5	Damping	267	Elastomer	166	150	380
A126B-5	Damping	267	Elastomer	166	150	380

characteristic

The high quality rubber body buckle has the function of reducing vibration, which can maintain the elastic preloading of the connector.

Available services

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
