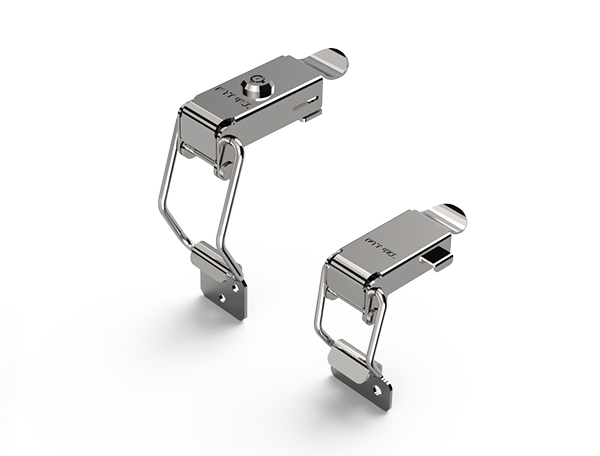

Safety Vertical Toggle Latch

A210

Safety Vertical Toggle Latch

Polish

application：Electric cabinet, vehicle, ship, machine tool

catalogue CAD data

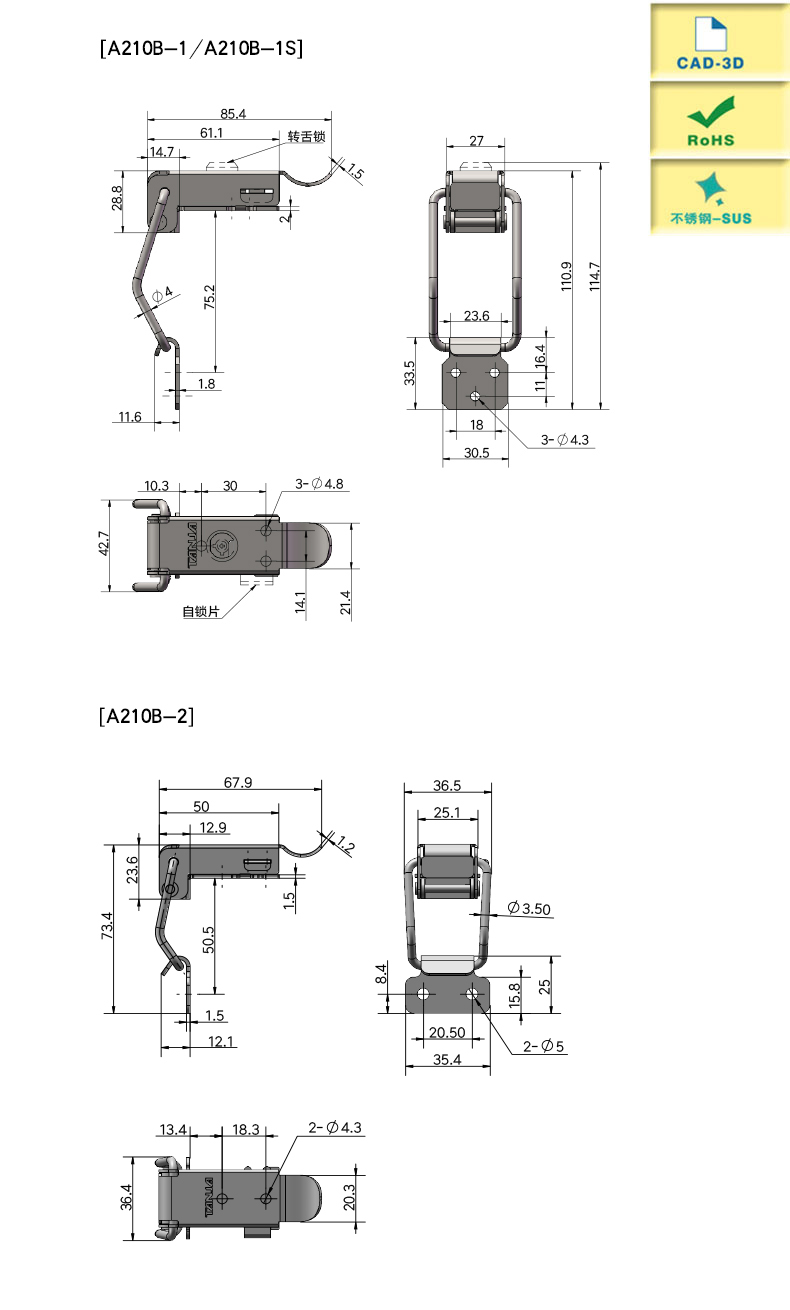

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）
A210B-1S	Lockable	85.4	SUS304	130	500	4000
A210B-1	Self lock	85.4	SUS304	118	500	4000
A210B-2	Self lock	67.94	SUS304	70	500	4000

characteristic

Can be installed at the corner of the cabinet

The buckle body is made of stainless steel and has excellent corrosion resistance

Available services

With lock / self-lock.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.

Product Name
Safety Vertical Toggle Latch
