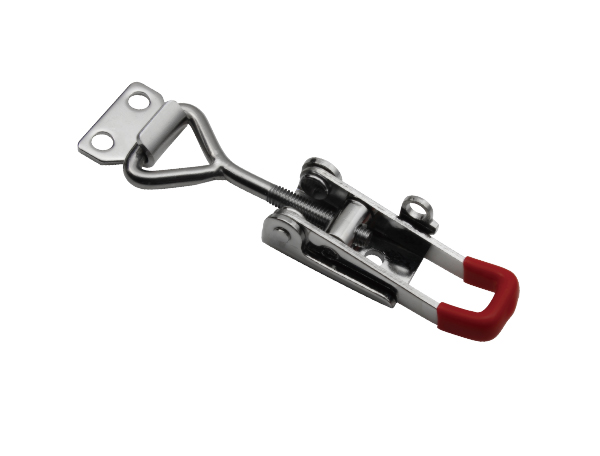

Adjustable Toggle Latch

4011

Adjustable Toggle Latch

Zinc-plated/Polish

application:Vehicles,medical equipment,engineering machinery

catalogue CAD data

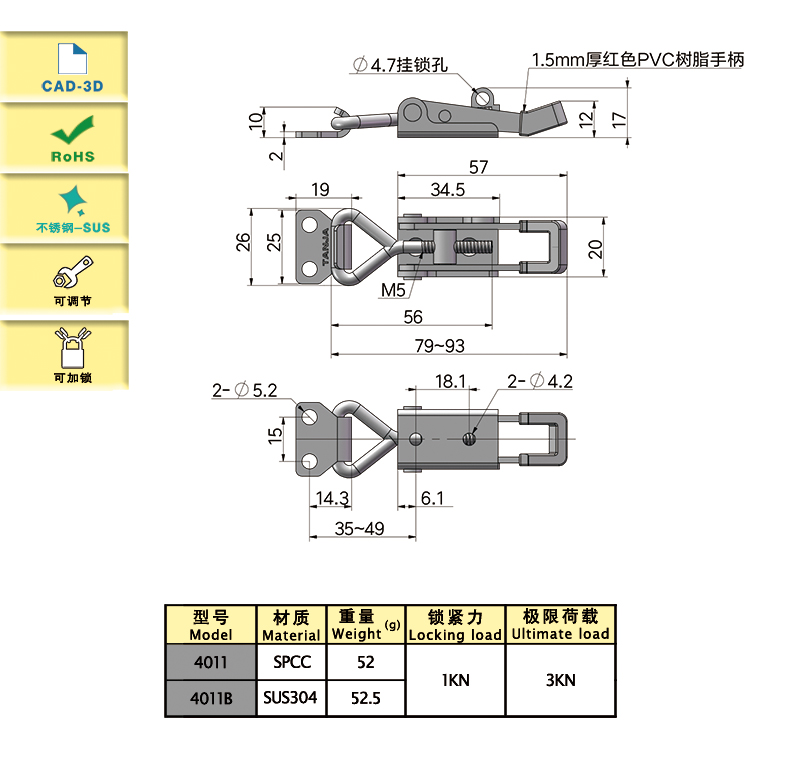

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
4011 Adjustable,Lockable 93.3-107.3 SPCC 52 1000 3000
4011B Adjustable,Lockable 93.3-107.3 SUS304 52.5 1000 3000
characteristic
Adjustable latch, convenient for operation
Available services

With lockhole, padlock or lead seal is available.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
