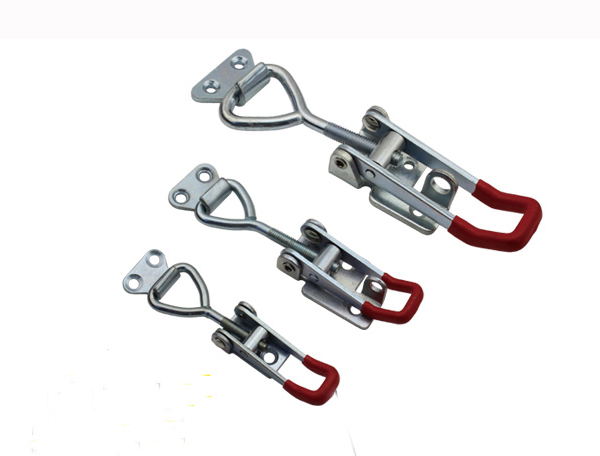

Adjustable Toggle Latch

4001 4002 4003

Adjustable Toggle Latch

Zinc-plated/Polish

application：Vehicle , packing case , mechanical equipment , oscillatory machine

catalogue CAD data

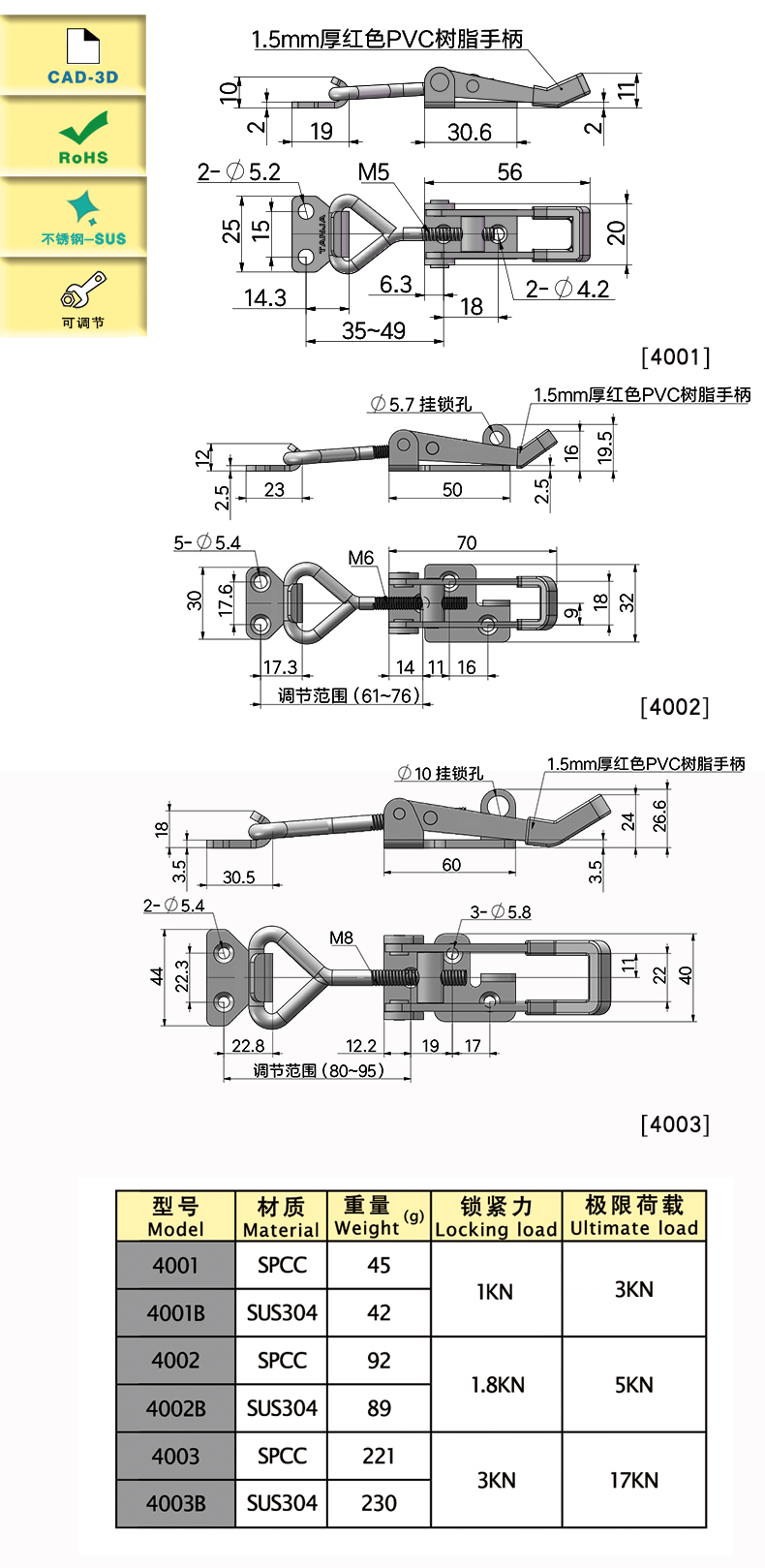

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）
4001	Adjustable	87—99.5	SPCC	45	1000	3000
4001B	Adjustable	87—99.5	SUS304	42	1000	3000
4002	Adjustable	124—134	SPCC	92	1800	5000
4002B	Adjustable	124—134	SUS304	89	1800	5000
4003	Adjustable	179—189	SPCC	221	3000	17000
4003B	Adjustable	179—189	SUS304	230	3000	17000

characteristic

U-shackle can adjust the mounting distance & clipping force

Suitable for heavy duty

Available services

Universal toggle latch , widely used in different fields.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
