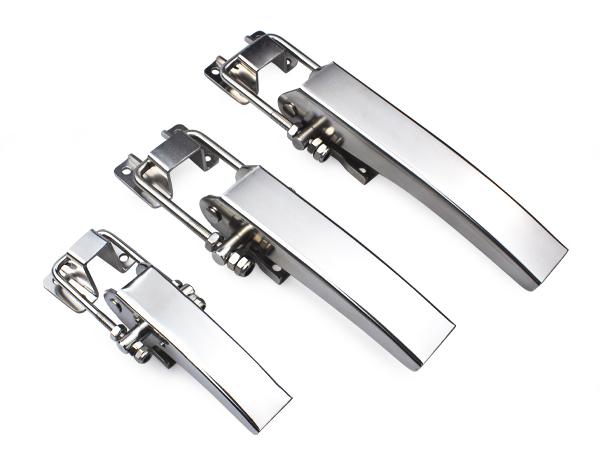

Heavy Duty Adjustable Toggle Latch

A209B

Heavy Duty Adjustable Toggle Latch

Polished

application：Construction machinery/freezer/oven

catalogue CAD data

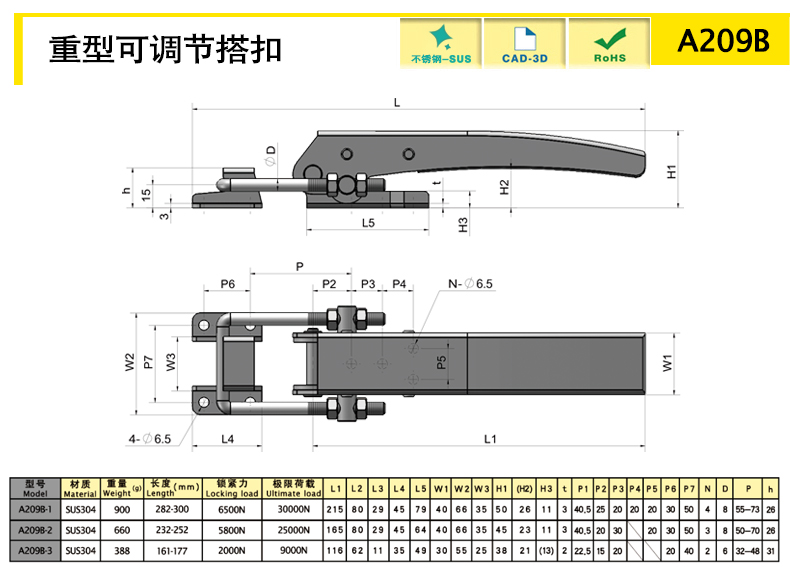

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）
A209B-1	Adjustable	282-300	SUS304	900	6500	30000
A209B-2	Adjustable	232-252	SUS304	660	5800	25000
A209B-3	Adjustable	161-177	SUS304	388	2000	9000

characteristic

Heavy duty, high locking force.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.

Available services

Product Name
Heavy Duty Adjustable Toggle Latch

More information

If you have more technical advice，Please call
0535-6217008-801
