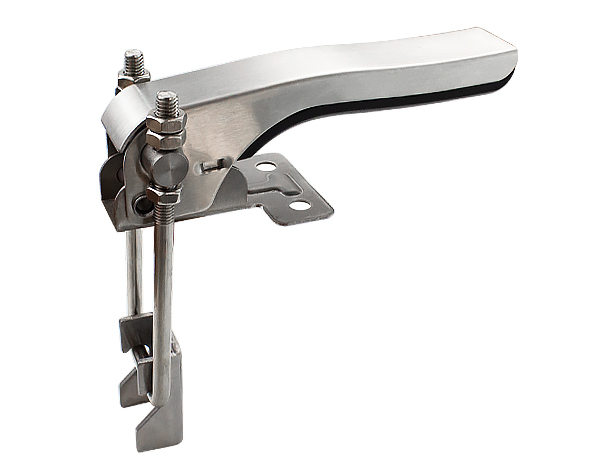

Adjustable Vertical Toggle Latch

A227B

Adjustable Vertical Toggle Latch

Polish

application:Construction machinery/freezer/oven

catalogue CAD data

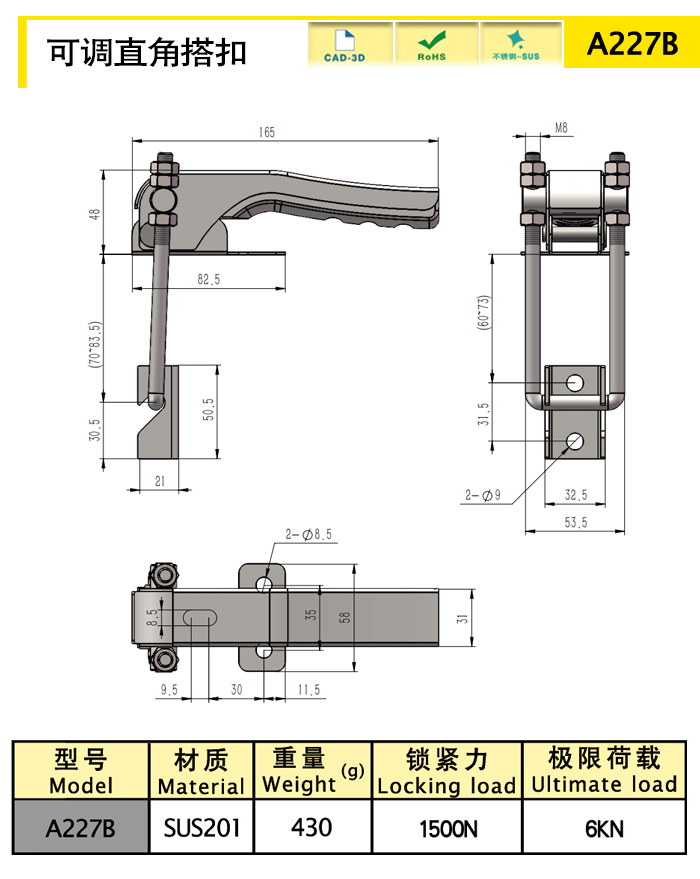

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A227B Adjustable 165 SUS201 430 1500 6000
characteristic
90 degree installation for vertical use, ergonomic and easy to operate
Available services

Heavy duty, large locking strength.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
