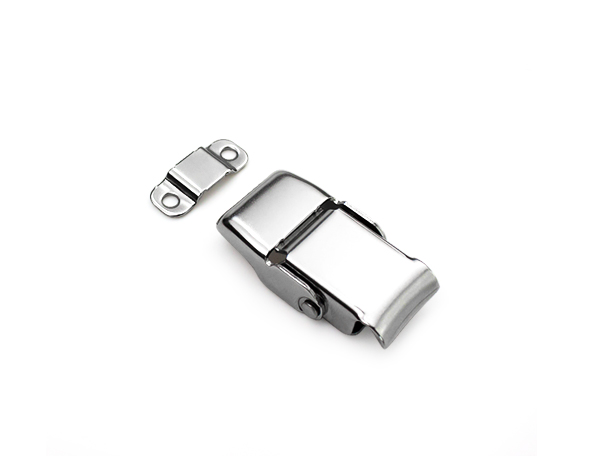

Concealed Toggle Latch

A218B

Concealed Toggle Latch

Polished

application：Food Equipment/Industrial Equipment/Medical Equipment

catalogue CAD data

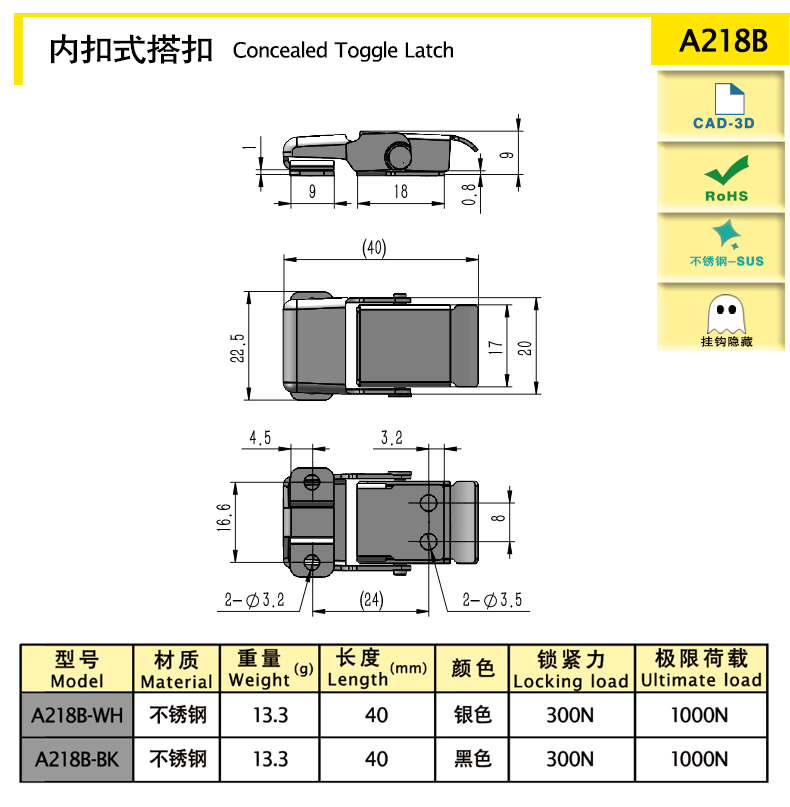

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）	3D DRAWINGS
A218B-WH	Concealed	40	SUS201	13.3	300	1000
A218B-BK	Concealed	40	SUS201	13.3	300	1000

characteristic

Concealed toggle latch, strong integrity and compact structure

Available services

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.

Product Name
Concealed Toggle Latch
