Heavy-duty Adjustable Self-lock Toggle Latch

43170

Heavy-duty Adjustable Self-lock Toggle Latch

application：Vehicle/medical machinery/engineering etc

catalogue CAD data

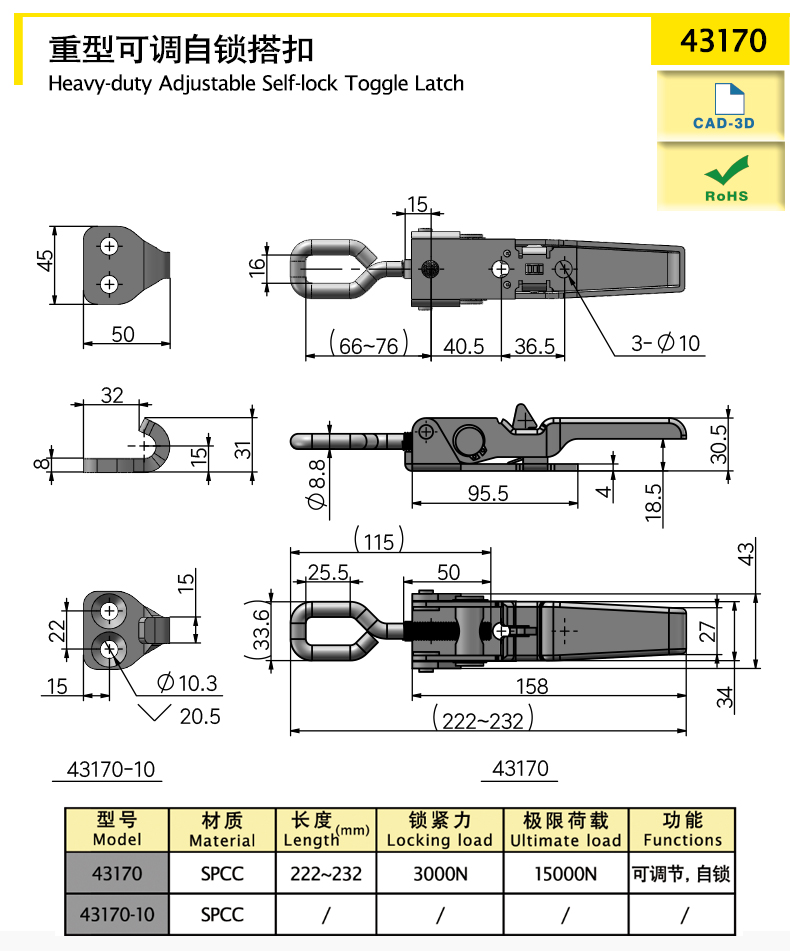

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）	3D DRAWINGS
43170	Adjustable,Self lock	222~232	SPCC	436	3000	15000
43170-10	/	/	SPCC	101.9	/	/

characteristic

U-shackle can adjust the mounting distance & clipping force.

Suitable for heavy duty.

Special safety self-locking mechanism prevents the latch from popping open.

Available services

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.

Product Name
Heavy-duty Adjustable Self-lock Toggle Latch

More information

If you have more technical advice，Please call
0535-6217008-801
