Heavy Duty Adjustable Toggle Latch

A92B

Polished

application：Vehicles/Medical Machinery/Engineering Machinery

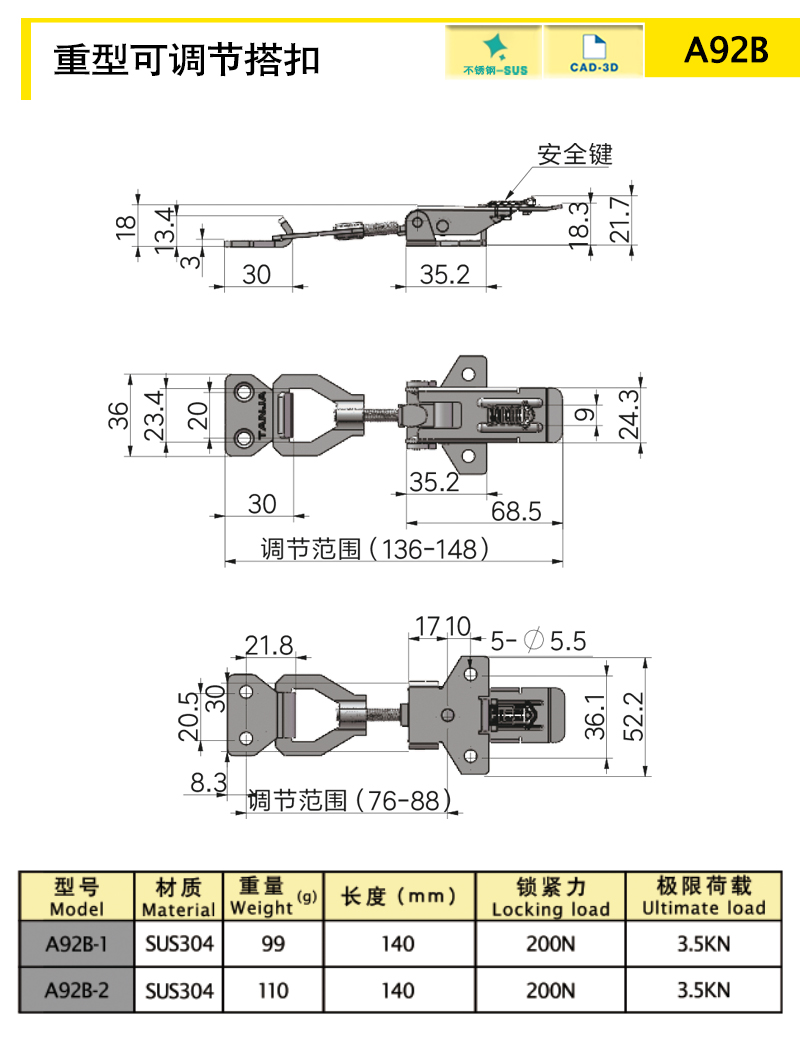

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）	3D DRAWINGS
A92B-1	Adjustable,Self lock	140	SUS304	99	200	3500
A92B-2	Adjustable,Self lock	140	SUS304	110	200	3500

characteristic

The hanging rod can be adjusted to change the locking force
Self-locking device prevent the latch accidental opening.

Available services

Product Name
Heavy Duty Adjustable Toggle Latch

More information

If you have more technical advice，Please call
0535-6217008-801
