Flexible & Damping Toggle Latch

A156

application：Hood/vibrating machinery

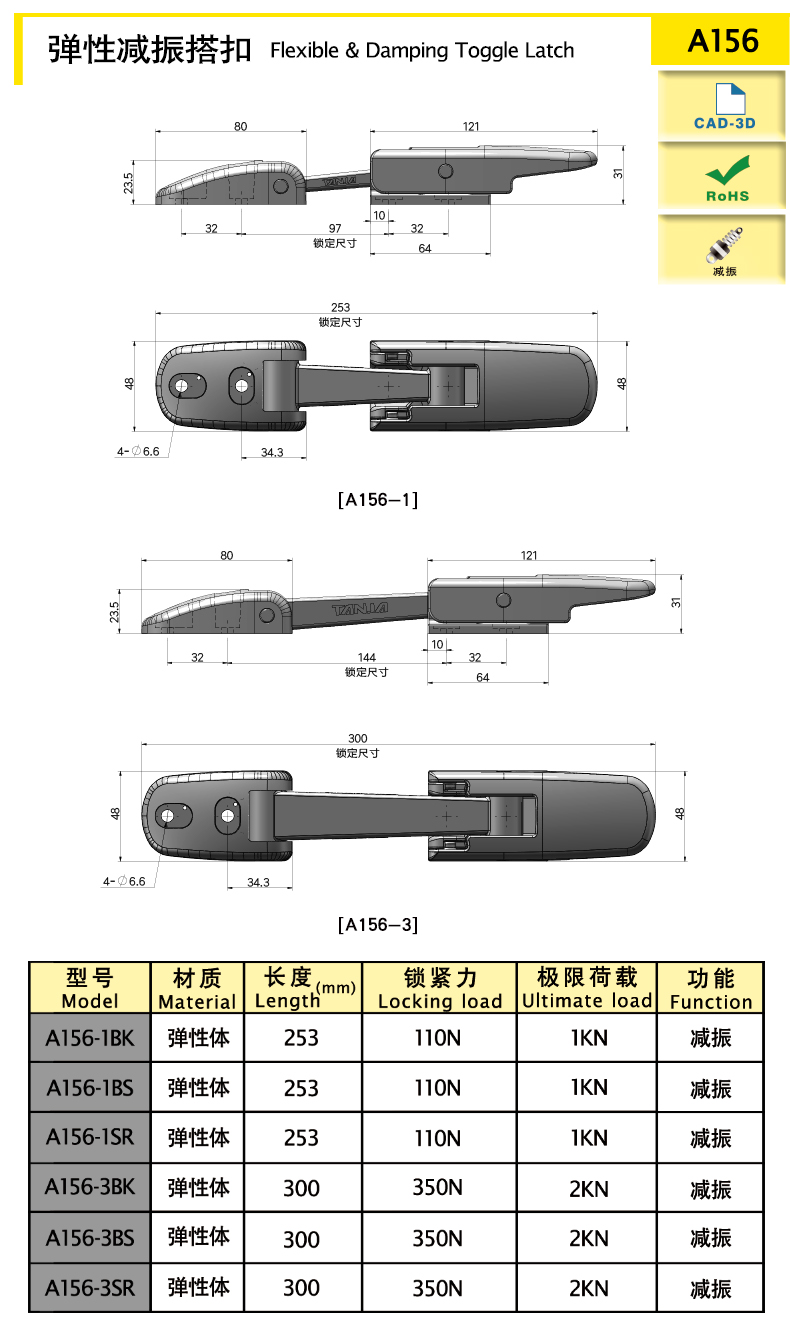

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）
A156-1BK	Damping	253	Elastomer	/	110	1000
A156-1BS	Damping	253	Elastomer	/	110	1000
A156-1SR	Damping	253	Elastomer	/	110	1000
A156-3BK	Damping	300	Elastomer	/	350	2000
A156-3BS	Damping	300	Elastomer	/	350	2000
A156-3SR	Damping	300	Elastomer	/	350	2000

characteristic

The high quality rubber body buckle has the function of reducing vibration, which can maintain the elastic preloading of the connector.

BK: Elastomer+PA (black); BS: Elastomer+ABS (bright silver); SR: Elastomer+ABS (silver)
