Damping & Safety Toggle Latch

A157B

Damping & Safety Toggle Latch

Polished

application：Small &medium-sized case cover,mechanical equipment,vehicles

catalogue CAD data

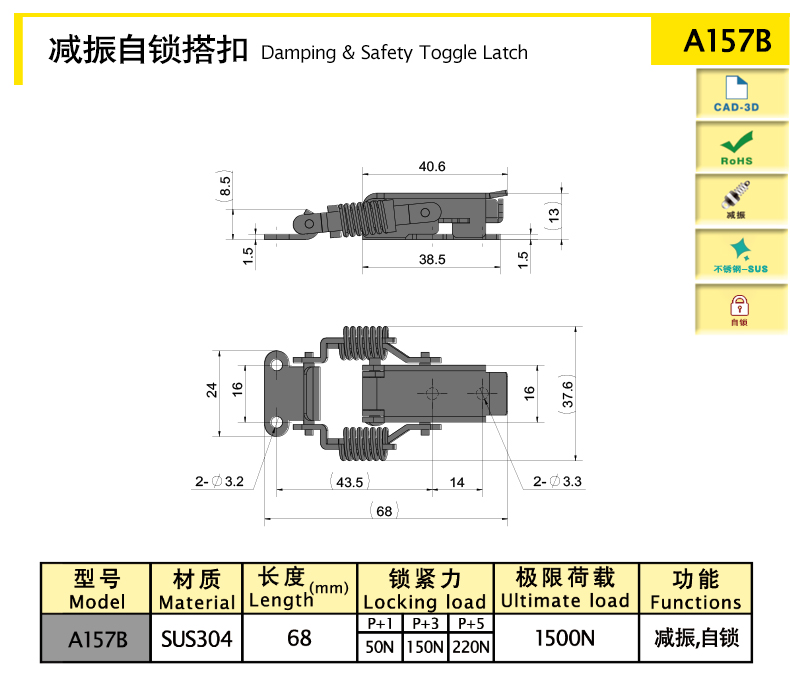

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）	3D DRAWINGS
A157B	Damping,Self lock	68	SUS304	45.6	220	1500

characteristic

Compression springs have elastic preloading and vibration reduction functions.
The self-locking device can achieve self-locking function, with reliable safety, and the buckle will not loosen due to vibration.

Available services

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.

Product Name
Damping & Safety Toggle Latch
