Heavy Duty Adjustable Vertical Toggle Latch

A223B

Polished

application：Engineering Machinery /the freezer / the oven

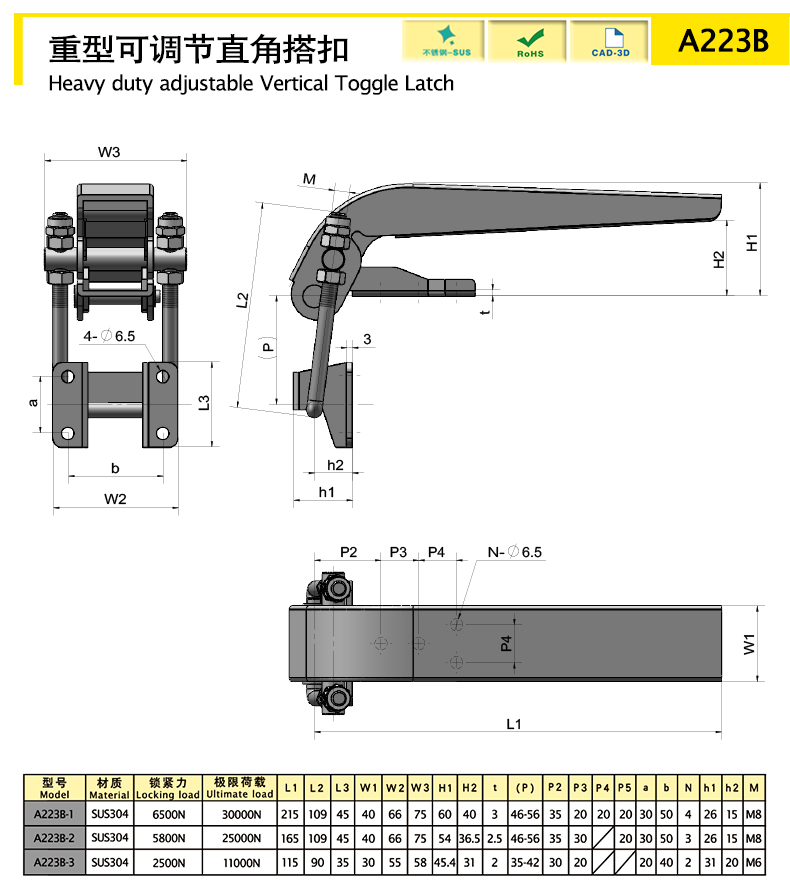

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）
A223B-1	Adjustable	215	SUS304	/	6500	30000
A223B-2	Adjustable	215	SUS304	702	5800	25000
A223B-3	Adjustable	165	SUS304	344.5	2500	11000

characteristic

Install vertically

Ergonomic, easy to operate.

Heavy duty, high locking force.

Available services

Product Name
Heavy Duty Adjustable Vertical Toggle Latch

More information

If you have more technical advice，Please call
0535-6217008-801
