Heavy Duty Adjustable Toggle Latch

40341G1

Heavy Duty Adjustable Toggle Latch

Zinc-plated

application:Engineering machinery,Large machinery, Case cover

catalogue CAD data

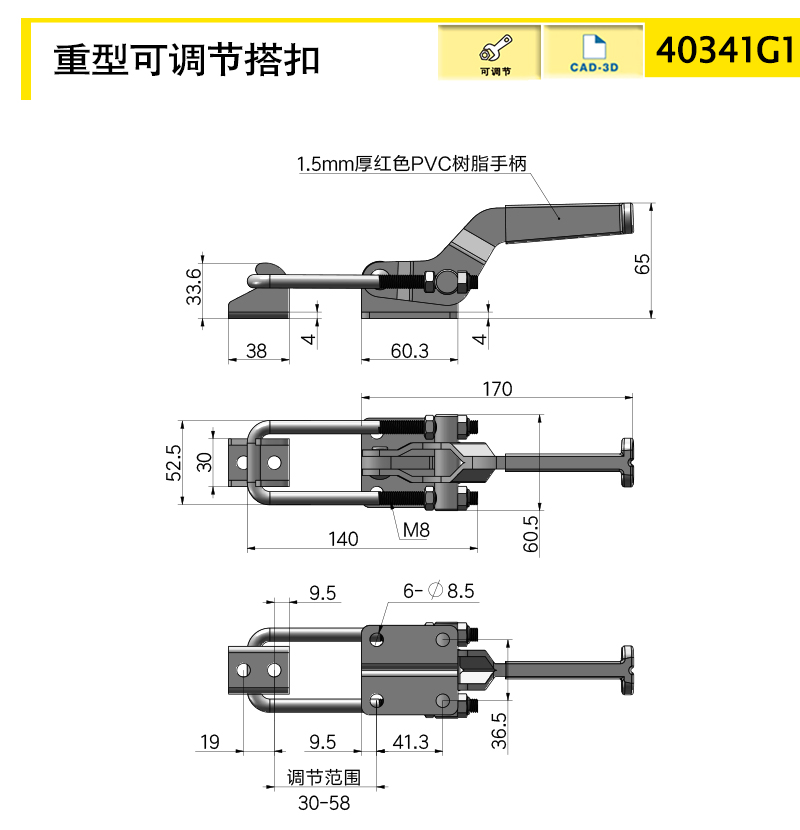

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
40341G1 Adjustable 290 SPCC 697.41 5800 25000
characteristic

U-shackle can adjust the mounting distance & locking force

Suitable for heavy duty
