Concealed & Safety Toggle Latch

A109B

Concealed & Safety Toggle Latch

Polish

application：Experimental & testing apparatus, Food & medical equipment

catalogue CAD data

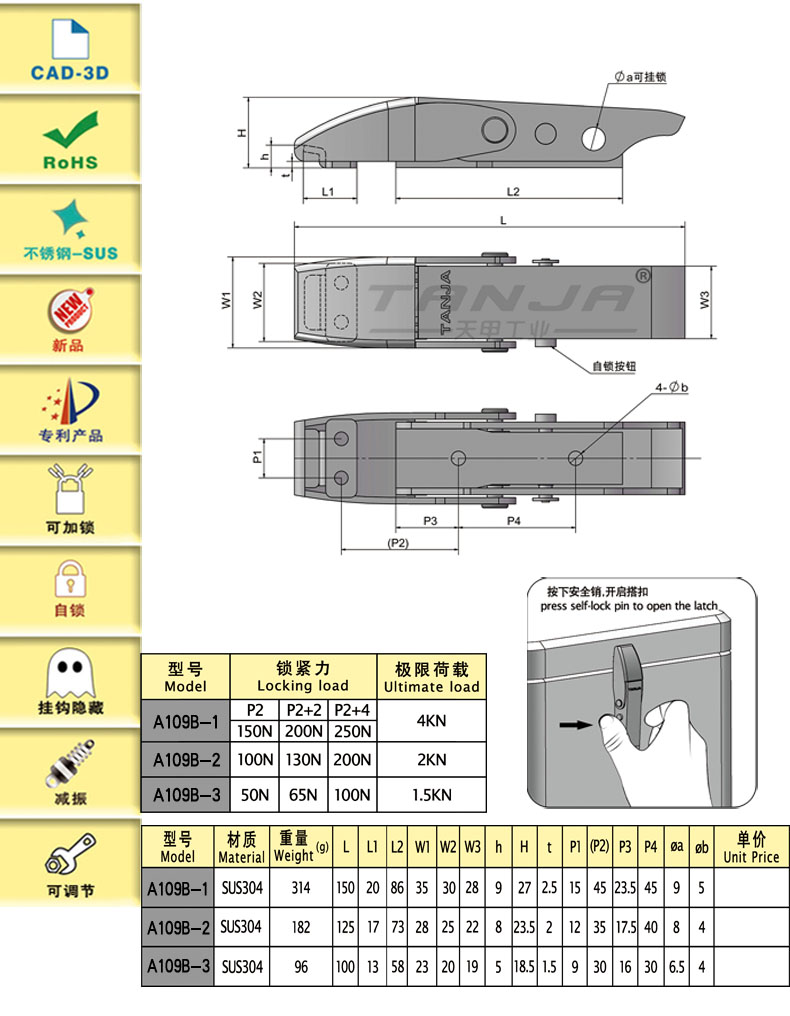

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）
A109B-1	Self lock,Lockable,Concealed,Damping,Adjustable	150.4	SUS304	314	250	4000
A109B-2	Self lock,Lockable,Concealed,Damping,Adjustable	125.3	SUS304	182	200	2000
A109B-3	Self lock,Lockable,Concealed,Damping,Adjustable	100.4	SUS304	96	100	1500

characteristic

Spring inside to reduce vibration,can keep prepressing to connection

Unique self-lock design,prevent the latch accidental opening,enhancing security

Available services

Inward catch,better visual effects compact structure.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
