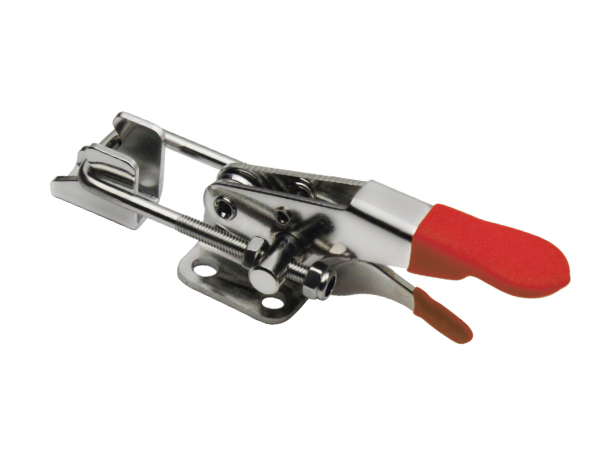

Adjustable Safety Toggle Latch

40123

Adjustable Safety Toggle Latch

Zinc plated / Polish

application:Vehicles, Medical equipment, Engineering machinery

catalogue CAD data

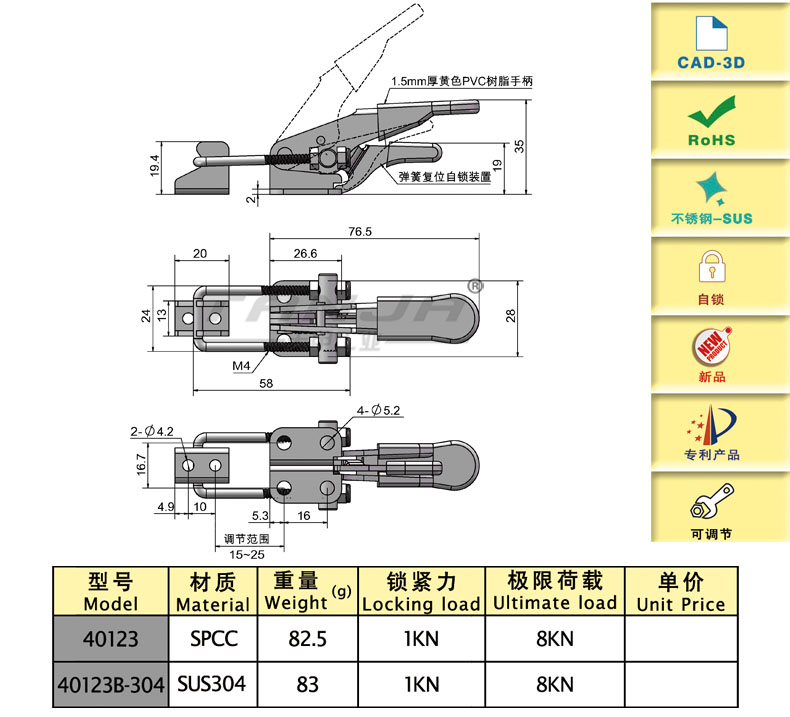

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
40123 Self lock,Adjustable 116.3 SPCC 82.5 1000 8000
40123B Self lock,Adjustable 116.3 SUS304 83 1000 8000
characteristic

U-shackle can adjust the mounting distance and tightness

Suitable for heavy duty

Available services

Unique self-lock design prevent the latch accidental opening.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
