Concealed & Adjustable Toggle Latch

A90

Concealed & Adjustable Toggle Latch

Polish

application:Medical,Boat,Vehicles & food equipment

catalogue CAD data

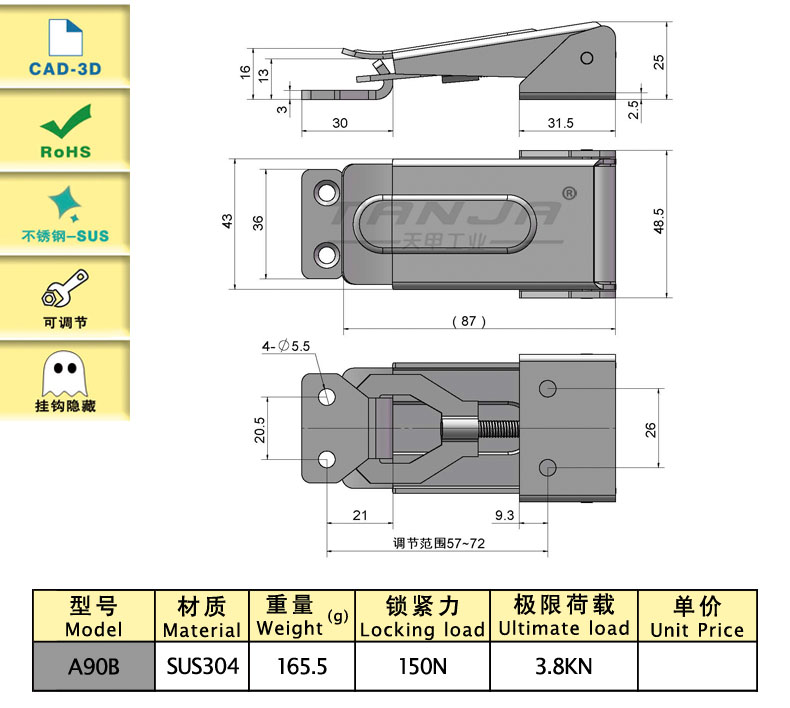

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A90B Adjustable,Concealed 118 SUS304 165.5 150 3800
characteristic

Suitable for heavy duty situation

Concealed toggle latch

Available services

Adjust hook to change the locking force.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
