Concealed & Adjustable Toggle Latch

A57

Concealed & Adjustable Toggle Latch

Zinc-plated / Polish

application：Vehicles, food & medical equipment,aircraft equipment engineering machinery

catalogue CAD data

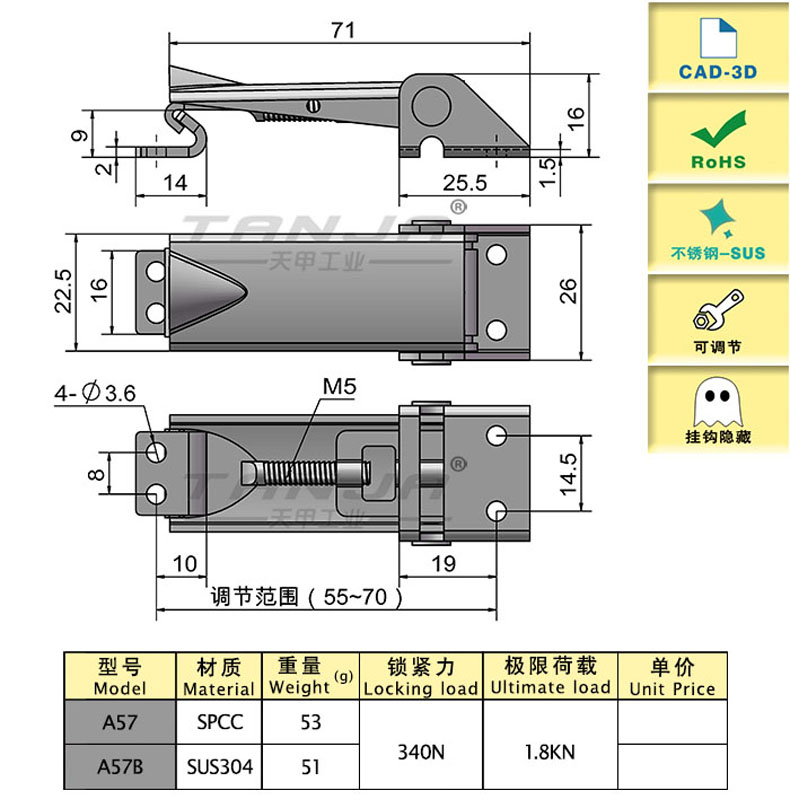

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）	3D DRAWINGS
A57	Adjustable,Concealed	81	SPCC	53	340	1800
A57B	Adjustable,Concealed	81	SUS304	51	340	1800

characteristic

Concealed toggle latch can provide the ability to conceal all mounting hardware and latching functions under the handle, Under-center mechanism allows secure off-place latching

Available services

Adjustable latch, Convenient for operation.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
