Concealed Toggle Latch

A28B

Concealed Toggle Latch

Polish

application:Medium-sized case cover,food &medical equipment door

catalogue CAD data

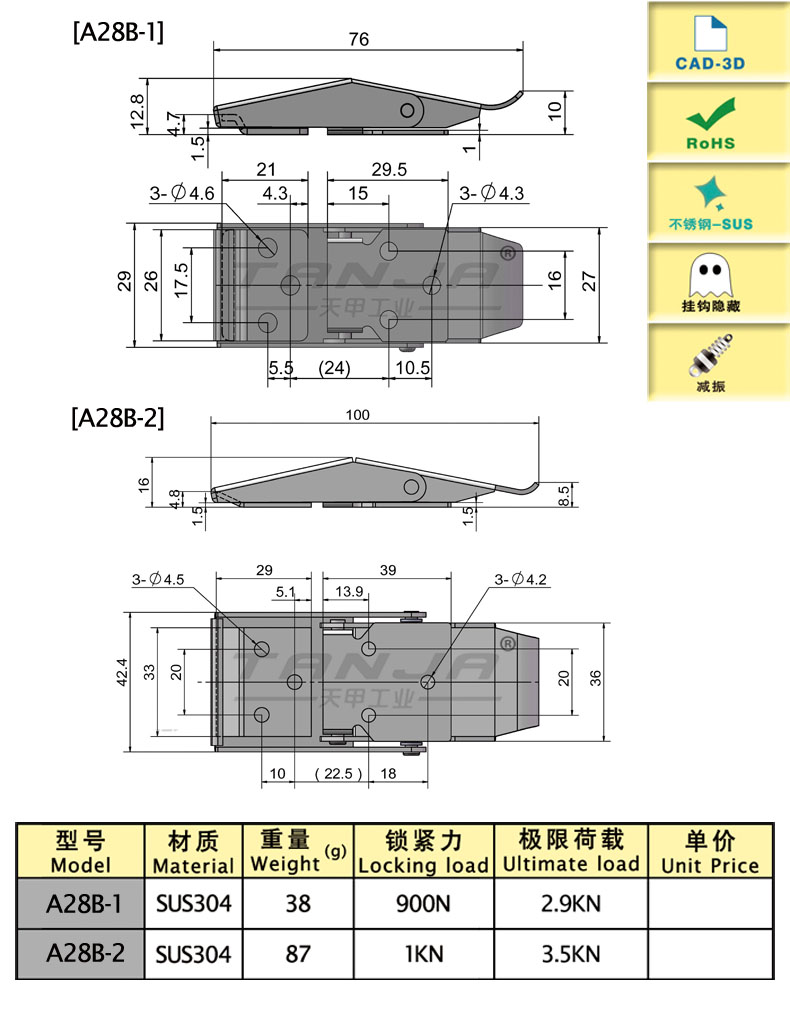

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A28B-1 Concealed,Damping 76.8 SUS304 38 900 2900
A28B-2 Concealed,Damping 100.5 SUS304 87 1000 3500
characteristic

Concealed toggle latch,better visual effects,compact structure

Available services

spring leaf inside to reduce vibration, Spring can auto- reset.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
