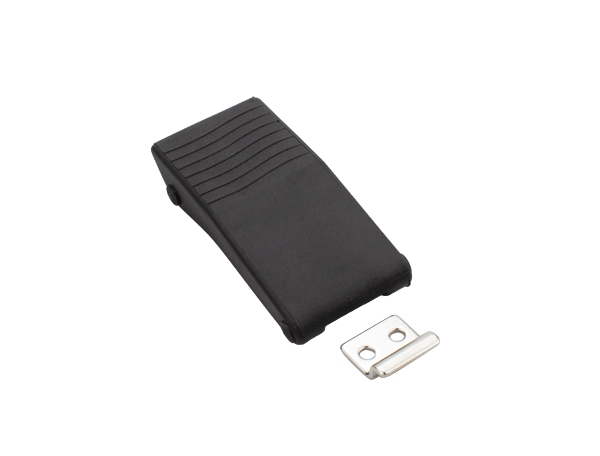

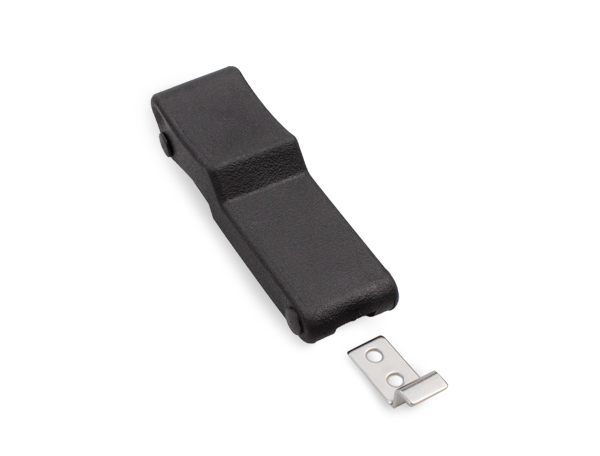

Concealed & Flexible Toggle Latch

A00

Concealed & Flexible Toggle Latch

application:Turnover box ,Engin hood

catalogue CAD data

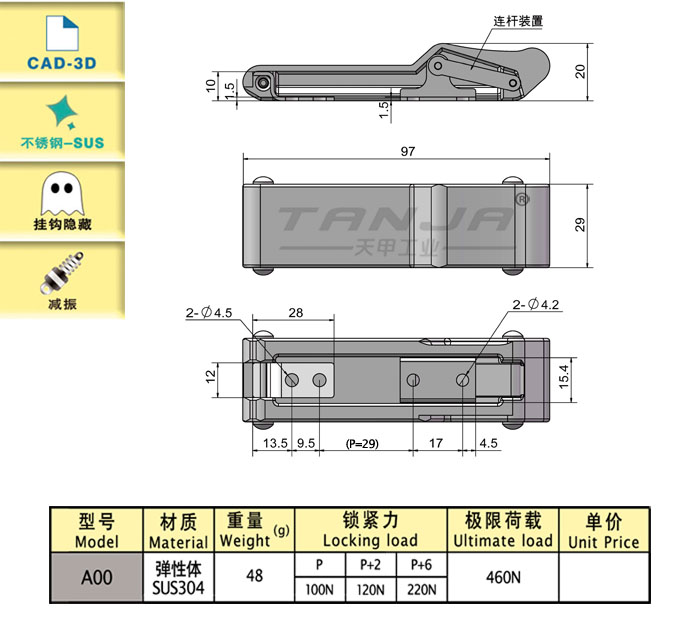

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A00 Damping,Concealed 96.4 Elastomer 48 / 460
characteristic

Concealed toggle latch,better visual effects,save installation space

Available services

Latch body made of high quality elastomer to reduce vibtation & apply prepressing.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
