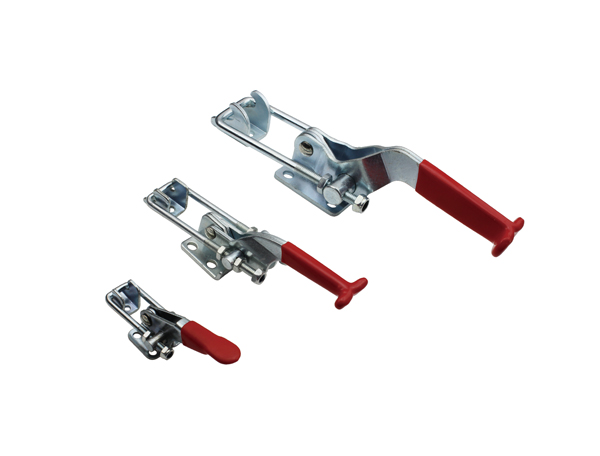

Heavy Duty Adjustable Toggle Latch

431

Heavy Duty Adjustable Toggle Latch

Zinc-plated / Polish

application：Engineering machinery,Large machinery, Case cover

catalogue CAD data

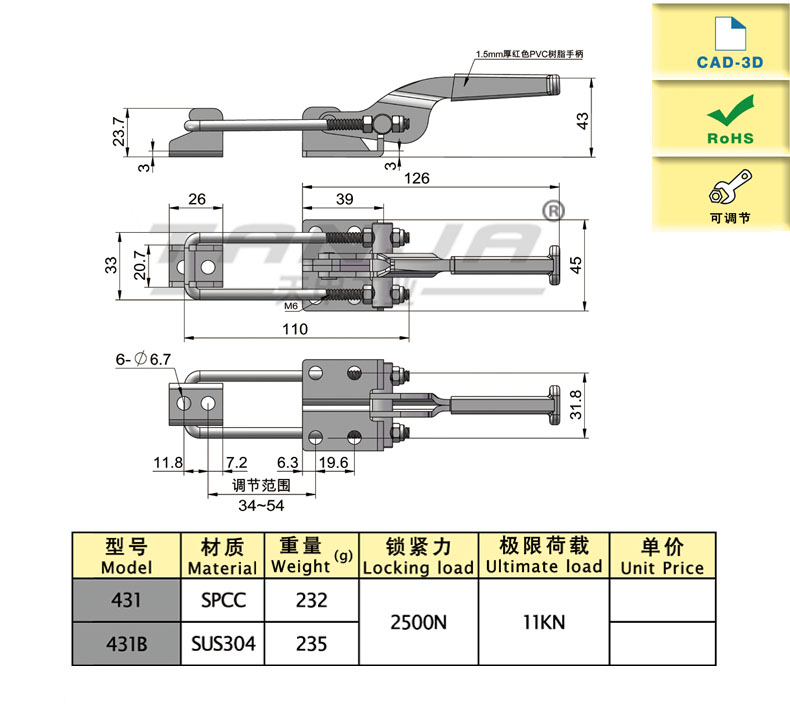

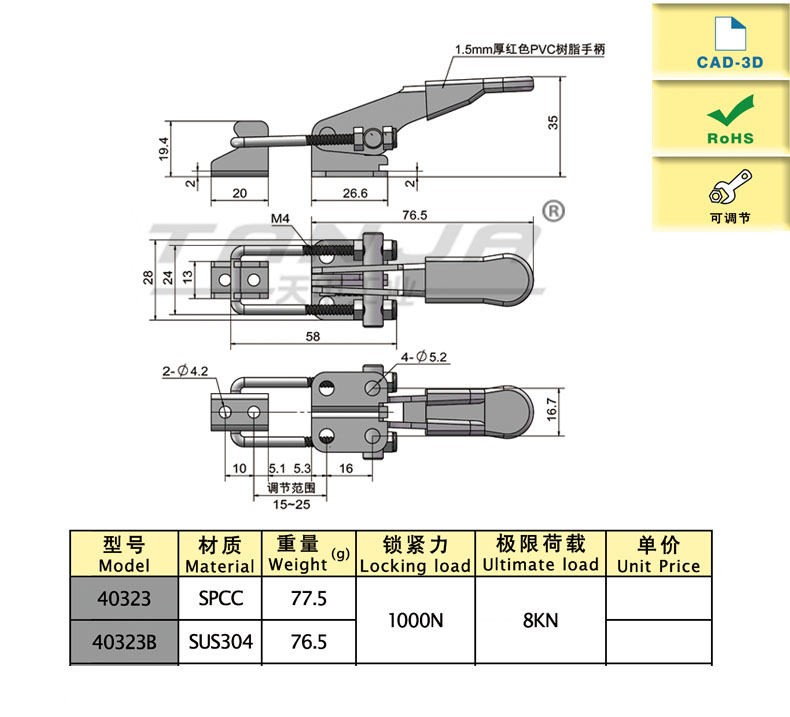

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）
40323	Adjustable	119.2	SPCC	77.5	1000	8000
40323B	Adjustable	119.2	SUS304	76.5	1000	8000
431	Adjustable	210	SPCC	232	2500	11000
431B	Adjustable	210	SUS304	235	2500	11000
40341	Adjustable	290	SPCC	658	5800	25000
40341B	Adjustable	290	SUS304	654.5	5800	25000

characteristic

U-shackle can adjust the mounting distance & clipping force

Suitable for heavy duty

Available services

Multiple materials are optional.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
