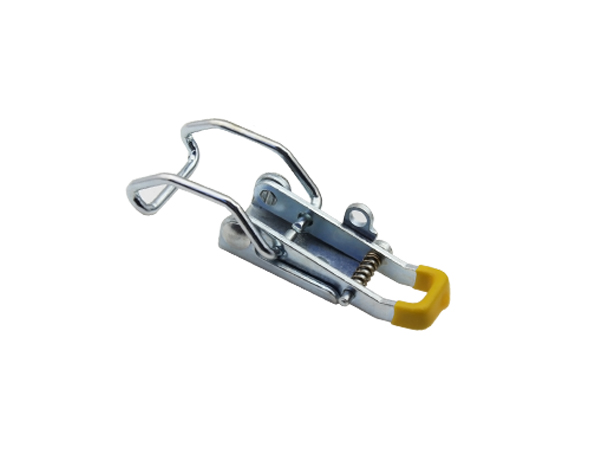

Model Number | Function | Length(mm) | Material | Weight (g) | Locking Force(N) | Ultimate Load(N) | 3D DRAWINGS |
---|---|---|---|---|---|---|---|
4021 | Damping,Self lock | / | SPCC | 40 | 3000 | 18000 |
Cambered spring wire to apply prepressing & reduce vibration
Without catch, convenient to operate
Safety pin has self-locking function,prevent the latch accidental opening.

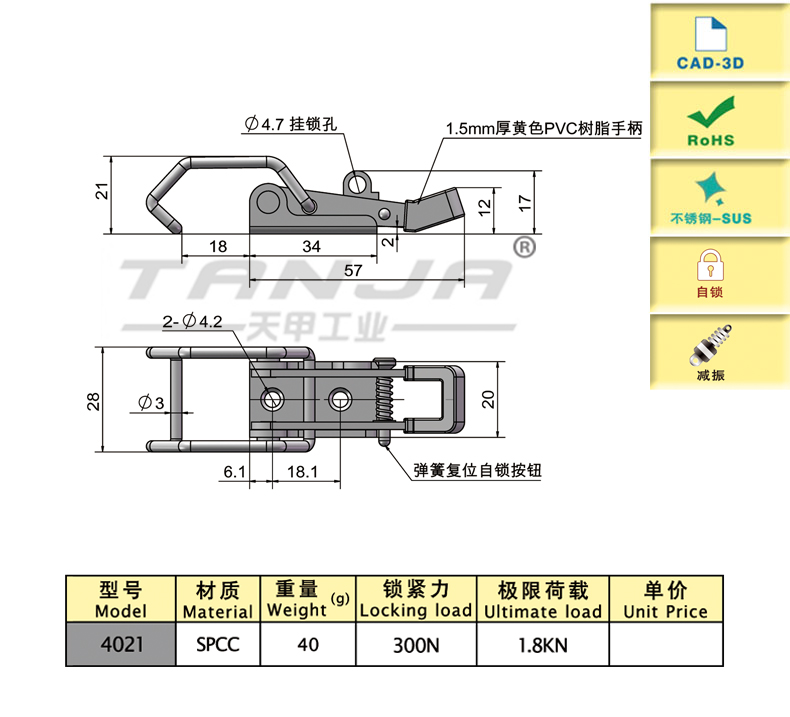

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
