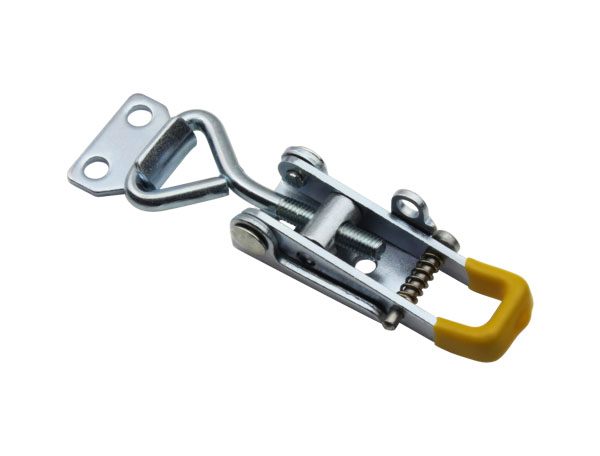

Adjustable & Safety Toggle Latch

4012

Adjustable & Safety Toggle Latch

Zinc-plated / Polish

application:Vehicles,Medical equipment,Engineering machinery

catalogue CAD data

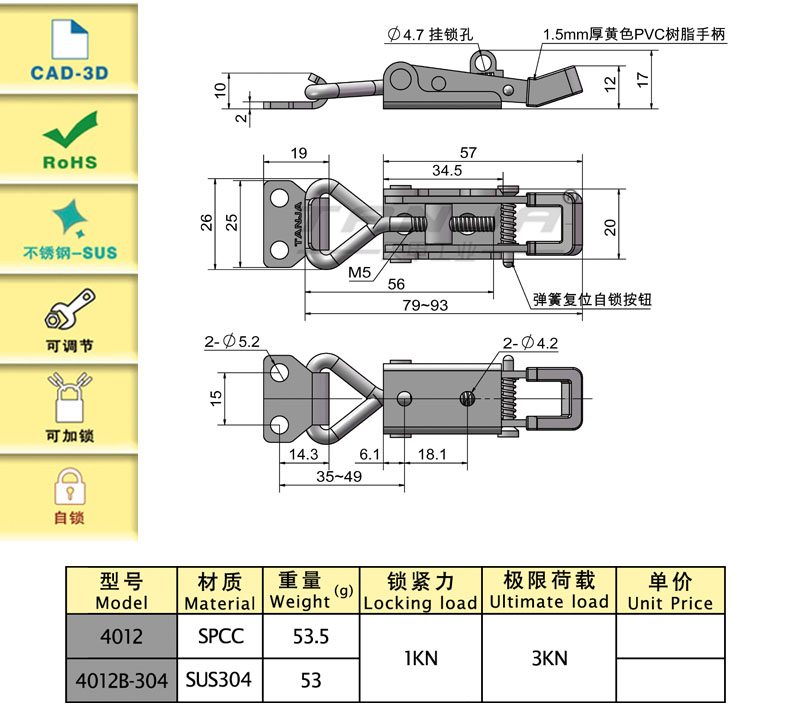

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
4012 Self lock,Adjustable,Lockable 102.2 SPCC 53.5 1000 3000
4012B Self lock,Adjustable,Lockable 102.2 SUS304 53 1000 3000
characteristic

With lockhole,padlock or lead seal is available

Adjustable latch, locking force is adjustable

Available services

Adoption of unique self-lock design, prevent the latch accidental opening, convenient to operate.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
