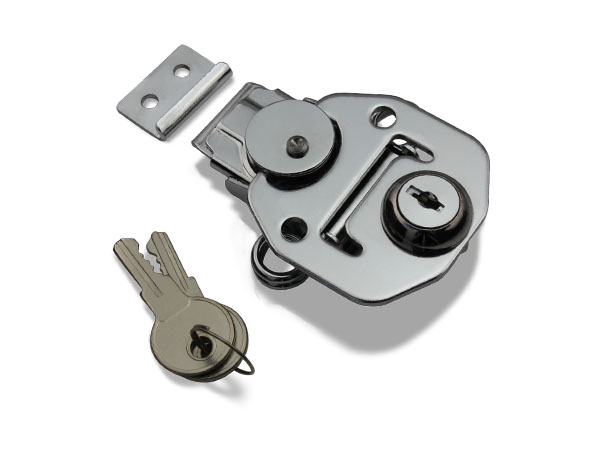

Rotary Lockable Toggle Latch

A58B

Rotary Lockable Toggle Latch

Chrome plated

application:Audio Equipment, Communication Devices, Recreation facility

catalogue CAD data

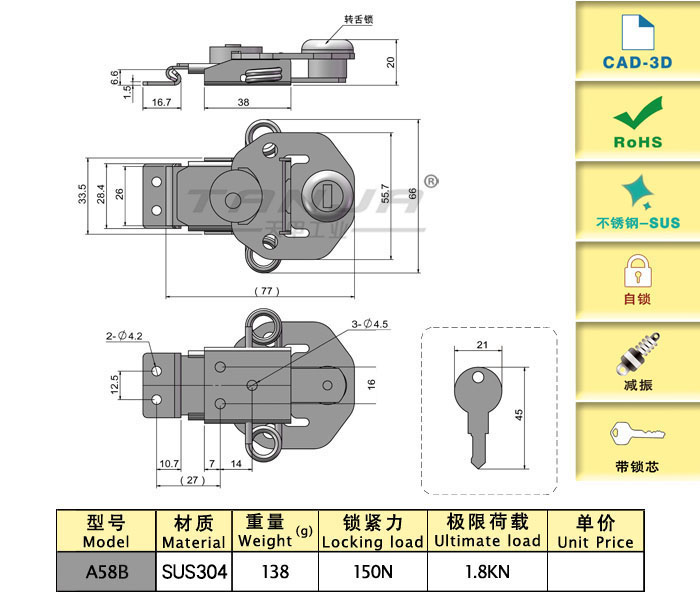

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A58B Lockable,Damping,Self lock 91.4 SUS304 138 150 1800
characteristic

Spring reduce vibration,can bear a certain impact force

Center mechanism self-locking device,prevent accidental opening

Available services

With lock cylinder,enhancing security.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.

Must choose
Please select the required product catalogue
Interested product
Company name example)Yantai Tanja Precision Machinery Co Ltd
Name of department example)Development Department
Name
Address
Telephone example)0535-621-7008
Fax example)0535-2277515-803
Email

Product Name
Rotary Lockable Toggle Latch
Free download of CAD drawings

More information

If you have more technical advice,Please call
0535-6217008-801
