Flexible & Damping Toggle Latch

A31B

Flexible & Damping Toggle Latch

Polish

application：Medical devices, Food and medical equipment

catalogue CAD data

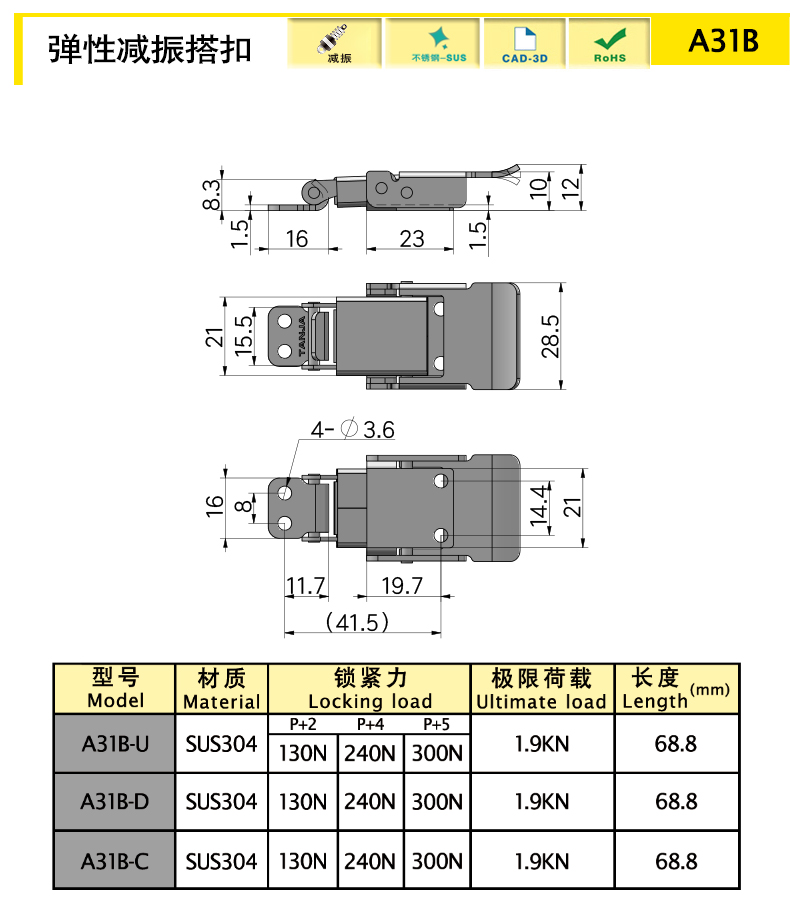

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）
A31B-U	Damping	68.8	SUS304	39.3	130	1900
A31B-D	Damping	68.8	SUS304	40	130	1900
A31B-C	Damping	68.6	SUS304	/	130	1900

characteristic

Compression spring inside,reduce vibration &apply prepressing.

A31B-D - Handle Bend Down

A31B-U - Handle Upward Bend

A31B-C - Handle straight

Available services

Use for smaller space.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
