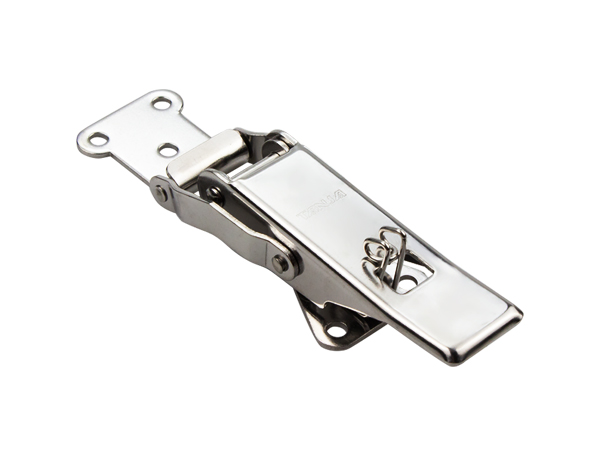

Damping & Safety Toggle Latch

A60B

Damping & Safety Toggle Latch

Polish

application:Nuclear power equipment, precise instrument, food equipment,packing machine

catalogue CAD data

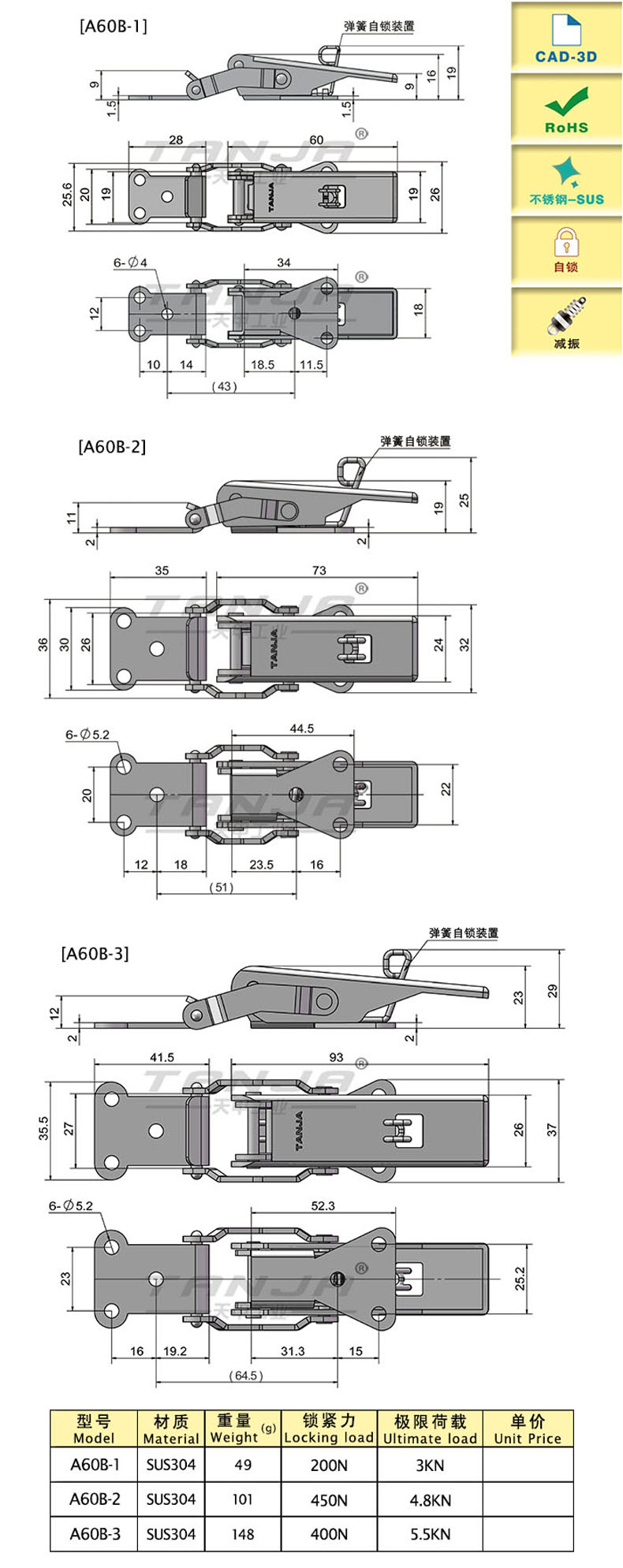

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A60B-1 Damping,Self lock 92 SUS304 49 200 3000
A60B-2 Damping,Self lock 112.6 SUS304 101 450 4800
A60B-3 Damping,Self lock 139.9 SUS304 148 400 5500
characteristic

Self-locking device prevent the latch accidental opening

Available services

Spring inside,reduce vibration &apply prepressing.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
