Flexible & Damping Toggle Latch

A12

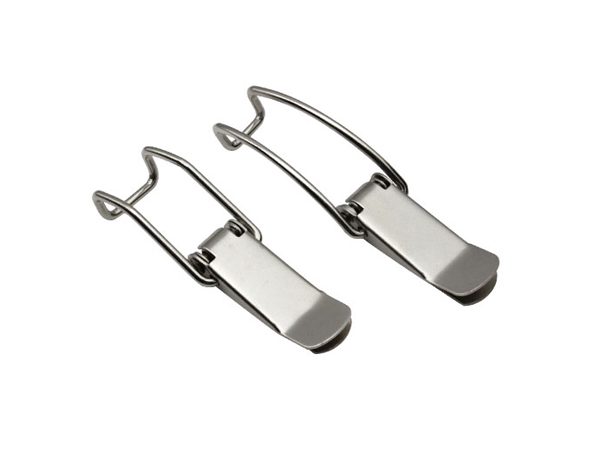

Flexible & Damping Toggle Latch

Nickel plated

application:Small &Medium-sized case,Device box cover, Bucket cover

catalogue CAD data

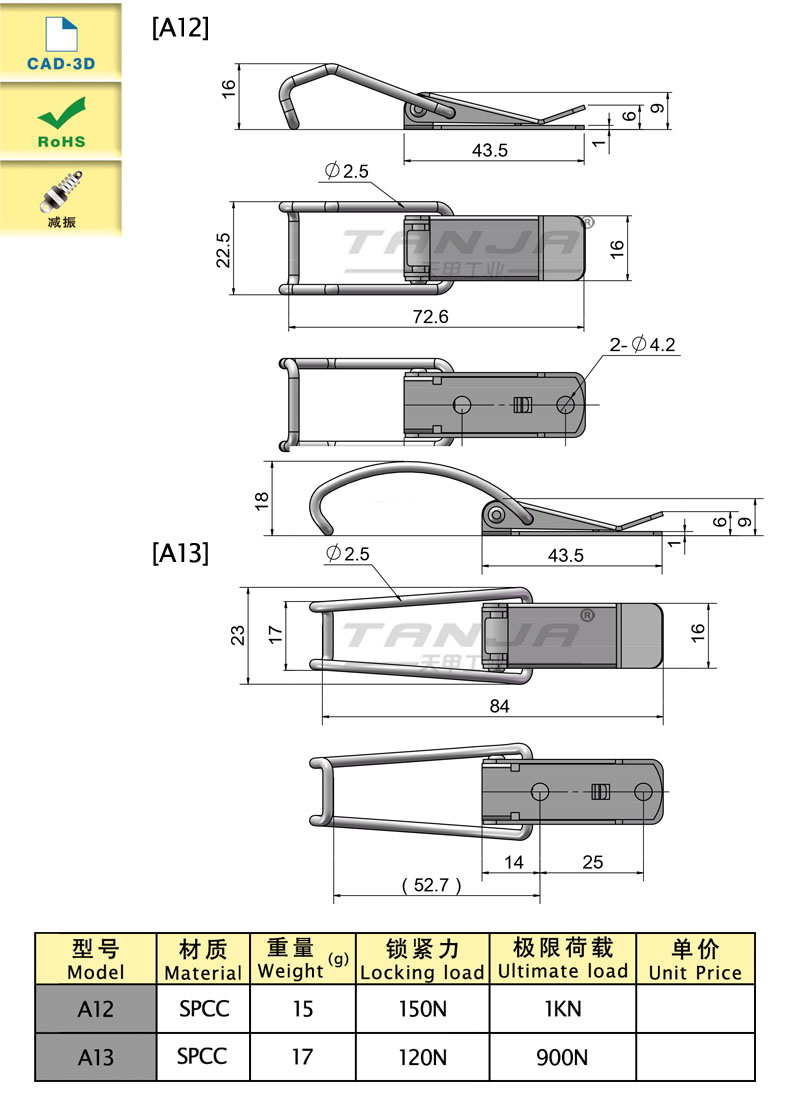

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A12 Damping 74 SPCC 15 150 1000
A13 Damping 84 SPCC 17 120 900
characteristic

Cambered spring wire to apply prepressing & reduce vibration

Available services

Without catch, convenient to operate.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.

Must choose
Please select the required product catalogue
Interested product
Company name example)Yantai Tanja Precision Machinery Co Ltd
Name of department example)Development Department
Name
Address
Telephone example)0535-621-7008
Fax example)0535-2277515-803
Email

Product Name
Flexible & Damping Toggle Latch
Free download of CAD drawings

More information

If you have more technical advice,Please call
0535-6217008-801
