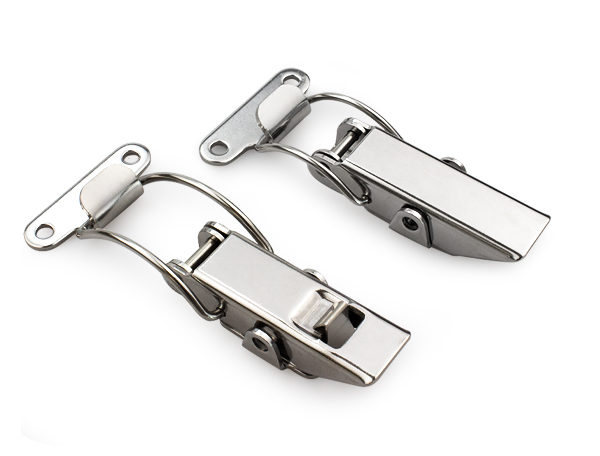

Damping & Safety Toggle Latch

A44B

Damping & Safety Toggle Latch

Polished

application：Small & medium-sized case cover,Mechanical equipment,Vehicles

catalogue CAD data

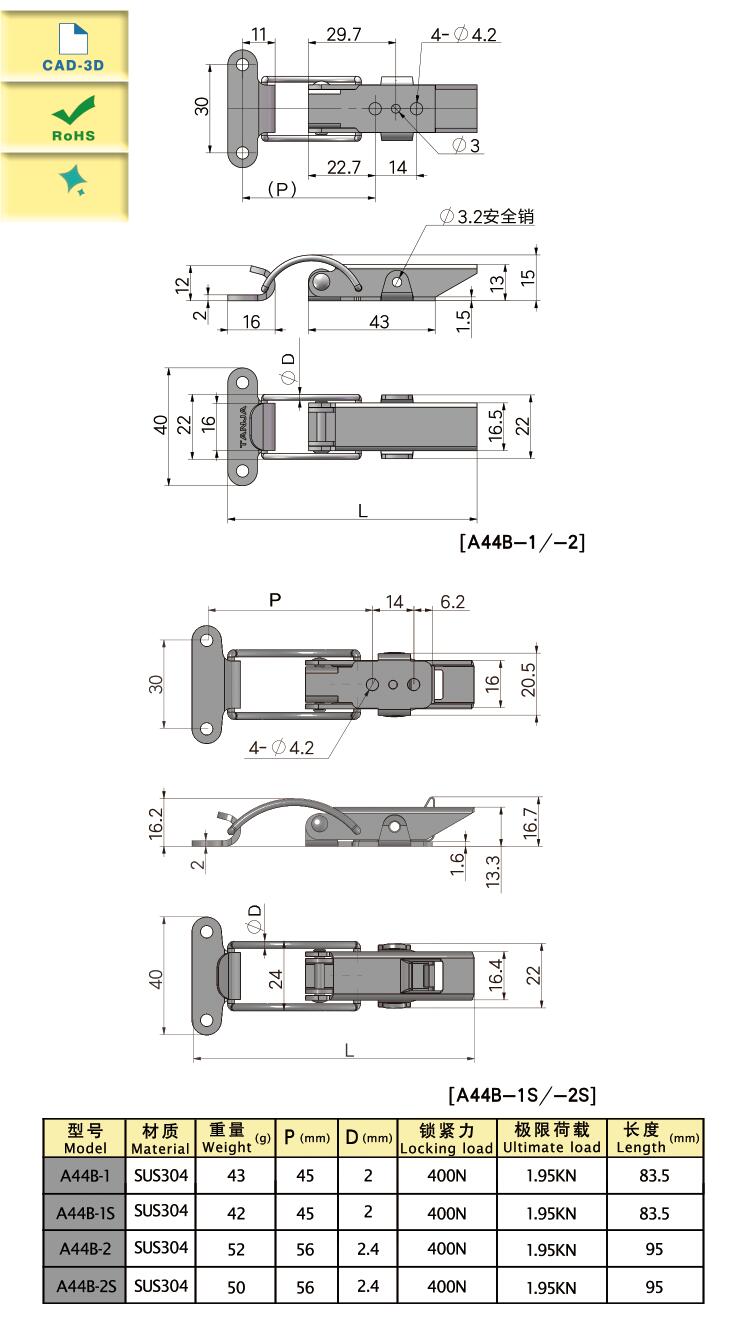

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）
A44B-1	Damping	83.5	SUS304	43	400	1950
A44B-1S	Self lock,Damping	83.5	SUS304	42	400	1950
A44B-2	Damping	95	SUS304	52	400	1950
A44B-2S	Self lock,Damping	95	SUS304	50	400	1950

characteristic

With side hole,can plug into pin to prevent loosening

Available services

OEM&ODM Service.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
