Draw Latch

A49B

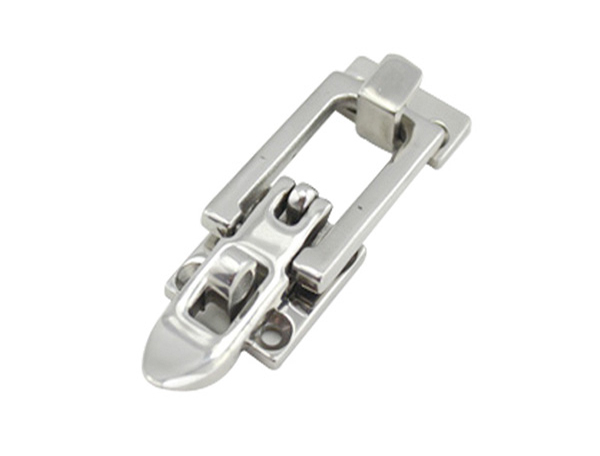

Draw Latch

Polish

application:Medical,boat,Vehicles &food equipment

catalogue CAD data

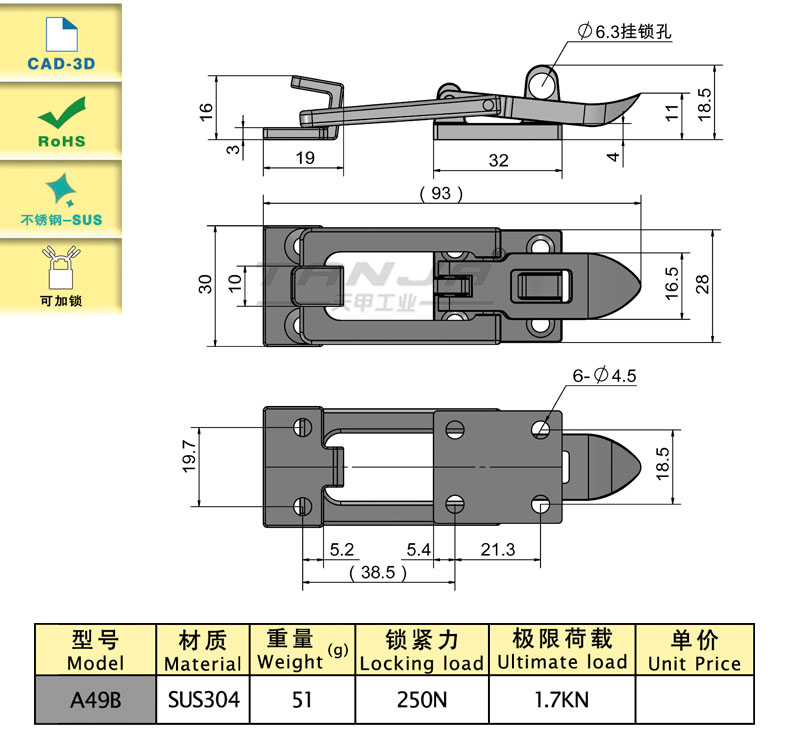

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A49B Draw latch 93.7 SUS304 87 250 1700
characteristic

Precision casting & mirror polish

Available services

With lockhole, padlock is available.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
