Draw Latch

A87

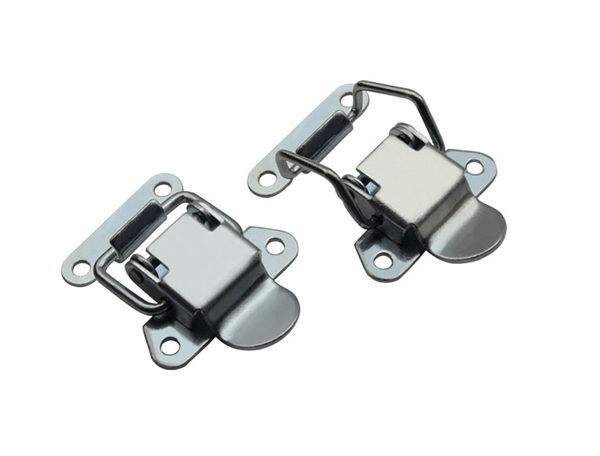

Draw Latch

Zinc plated

application:Small case, Device box cover,Toolbox

catalogue CAD data

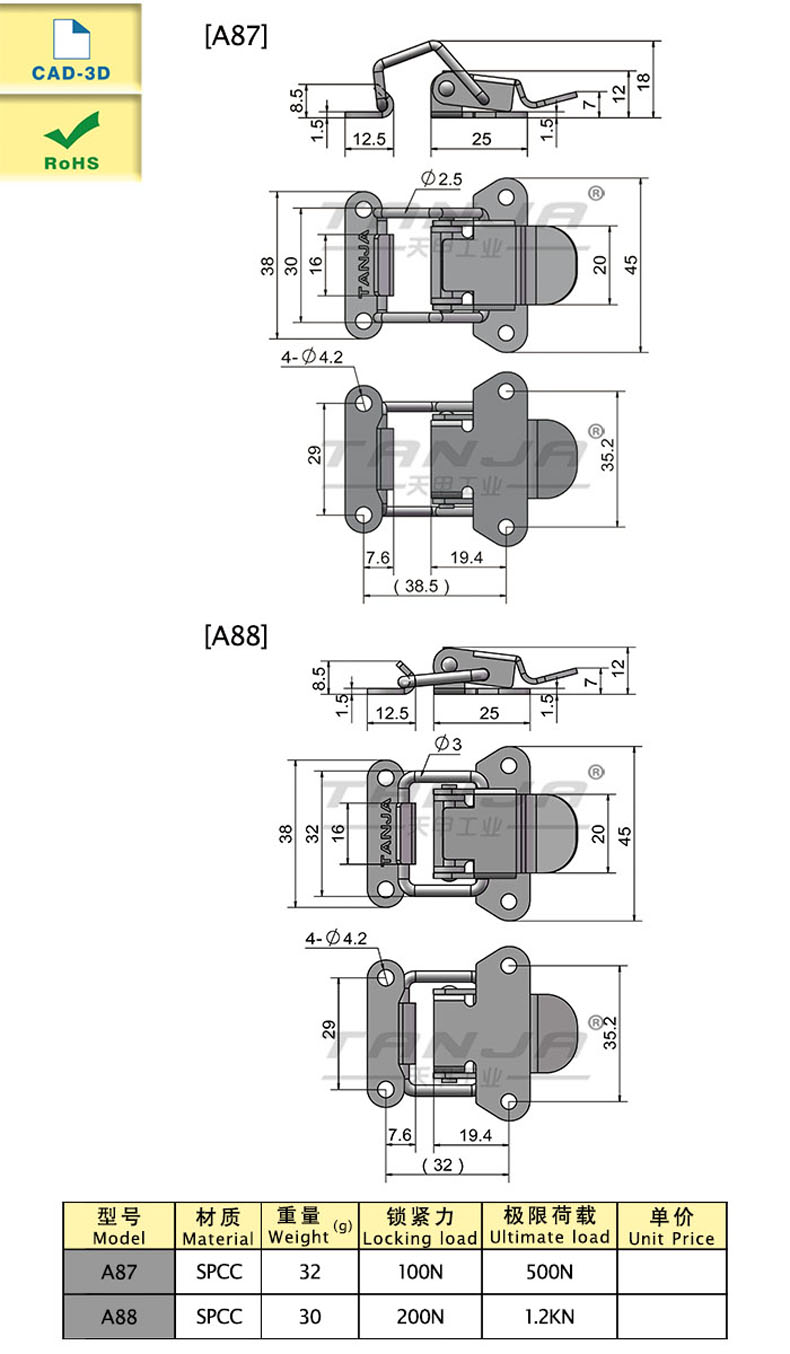

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A87 Draw latch 45 SPCC 32 100 500
A88 Draw latch 38 SPCC 30 200 1200
characteristic

Mounting hole exposed. Easy to install

Available services

Use for smaller space.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
