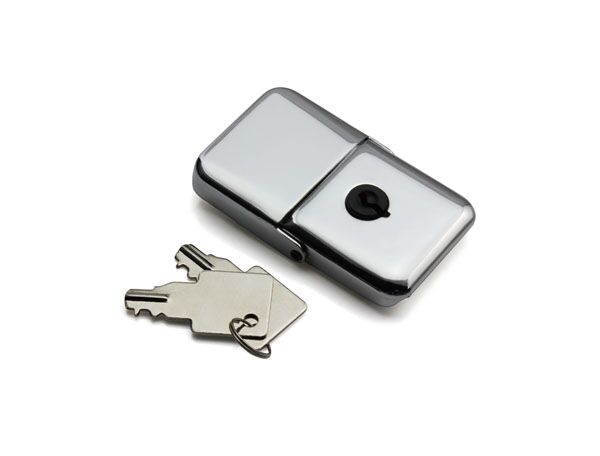

Concealed & Lockable Toggle Latch

A107B

Concealed & Lockable Toggle Latch

Polish

application:Advertising box, Communication equipment, Electrical cabinet

catalogue CAD data

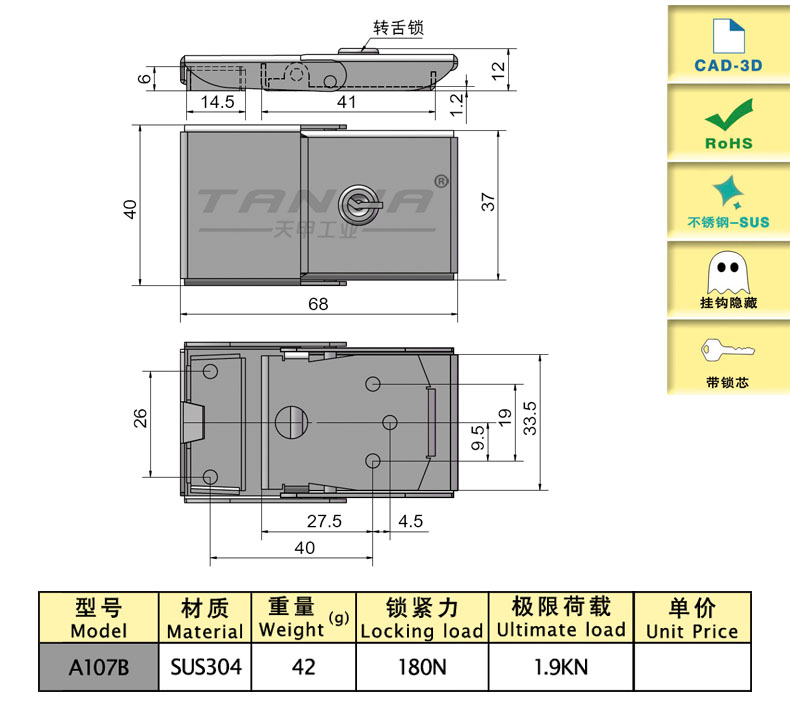

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A107B Concealed,Lockable 67.9 SUS304 42 180 1900
characteristic
With lock cylinder & key,anti-theft,enhancing security
Available services

Inward catch, better visual effects compact structure.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
