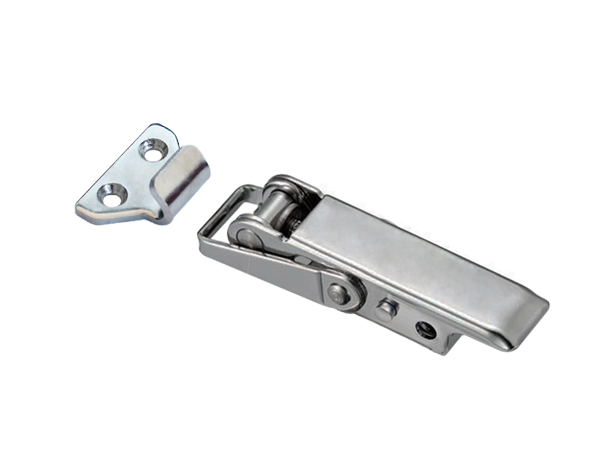

Adjustable & Safety Toggle Latch

A113B

Adjustable & Safety Toggle Latch

Polish

application:Experiment &testing apparatus / Food &medical equipment

catalogue CAD data

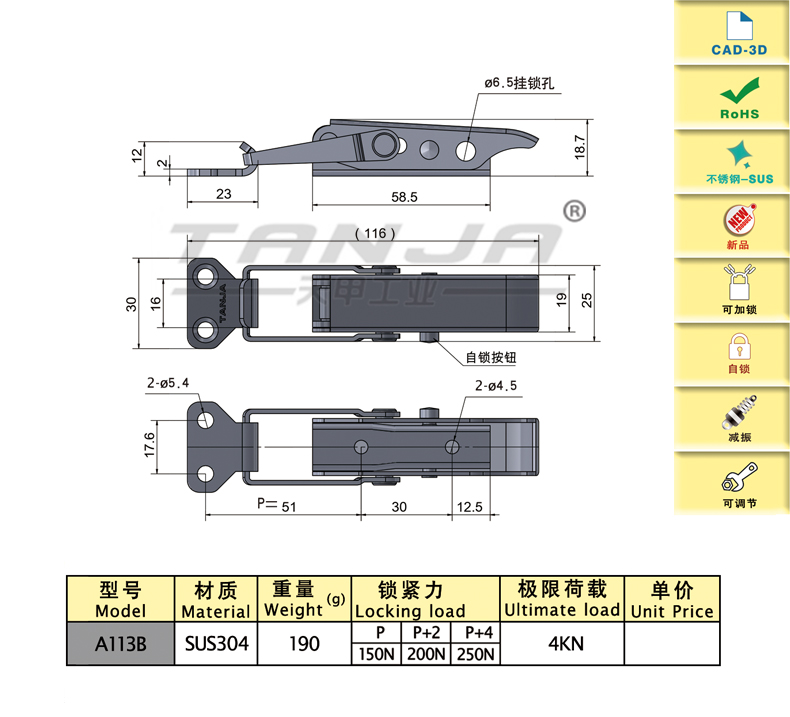

Product size diagram
Product size and properties
Model Number Function bottomLength(mm) bottomMaterial Weight (g) bottomLocking Force(N) bottomUltimate Load(N) bottom 3D DRAWINGS
A113B Lockable,Self lock,Damping,Adjustable 118 SUS304 190 250 4000
characteristic

With side hole, can plug into pin to prevent loosening

Unique self-lock design, prevent the latch accidental opening, enhancing security

Available services

Spring inside to reduce vibration,can keep prepressing to connection.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.
