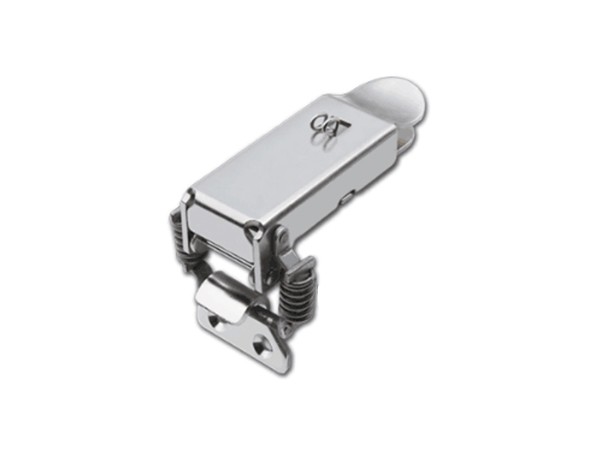

Vertical & Damping Toggle Latch

A72

Vertical & Damping Toggle Latch

Nickel plated / Polish

application：Small &Medium-sized case cover / mechanical equipment / vehicles

catalogue CAD data

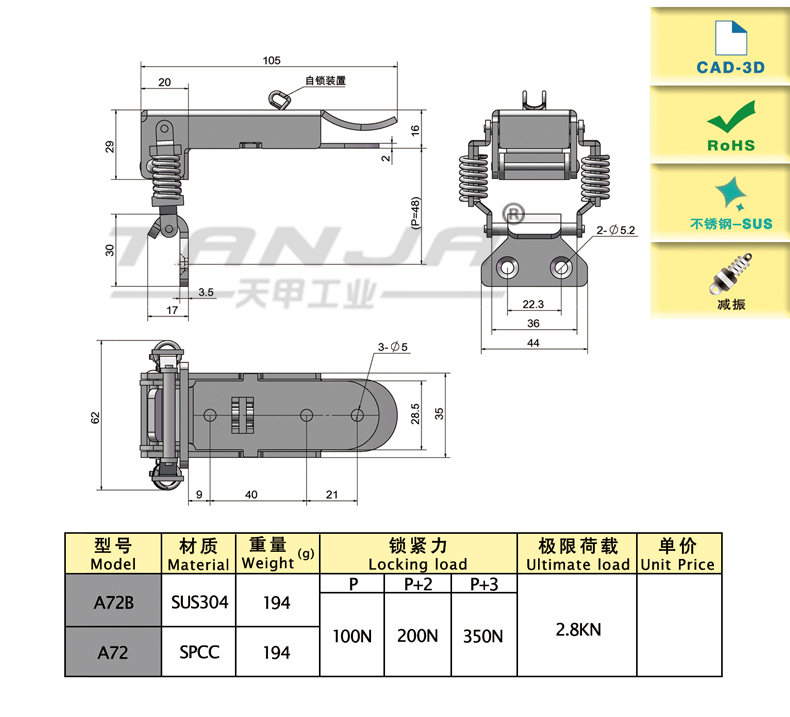

Product size diagram

Product size and properties

Model Number	Function	Length（mm）	Material	Weight (g)	Locking Force（N）	Ultimate Load（N）	3D DRAWINGS
A72B	Damping,Self lock	105	SUS304	194	350	2800
A72	Damping,Self lock	105	SPCC	194	350	2800

characteristic

Spring inside to reduce vibration & apply prepressing

Self-locking device prevent the latch accidental opening

Available services

Install vertically.

Statement: The "Locking Force" in the chart is the best locking force determined by the test (meaning that adults can easily open and close with bare hands); the hole distance between the hook and the latch body in the picture is the unstressed dimension, which needs to be adjusted hole spacing by yourself to meet different locking force requirements.

Product Name
Vertical & Damping Toggle Latch

More information

If you have more technical advice，Please call
0535-6217008-801
