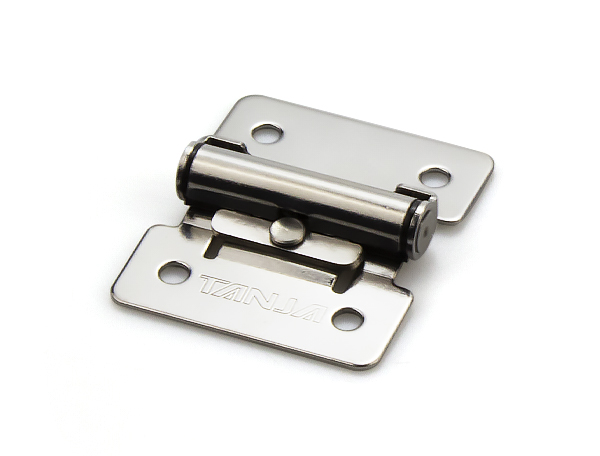

Torque Hinge

K201B

Torque Hinge

Stainless steel polished

application：Electrical cabinet, instrument cabinet, all kinds of automatic equipment

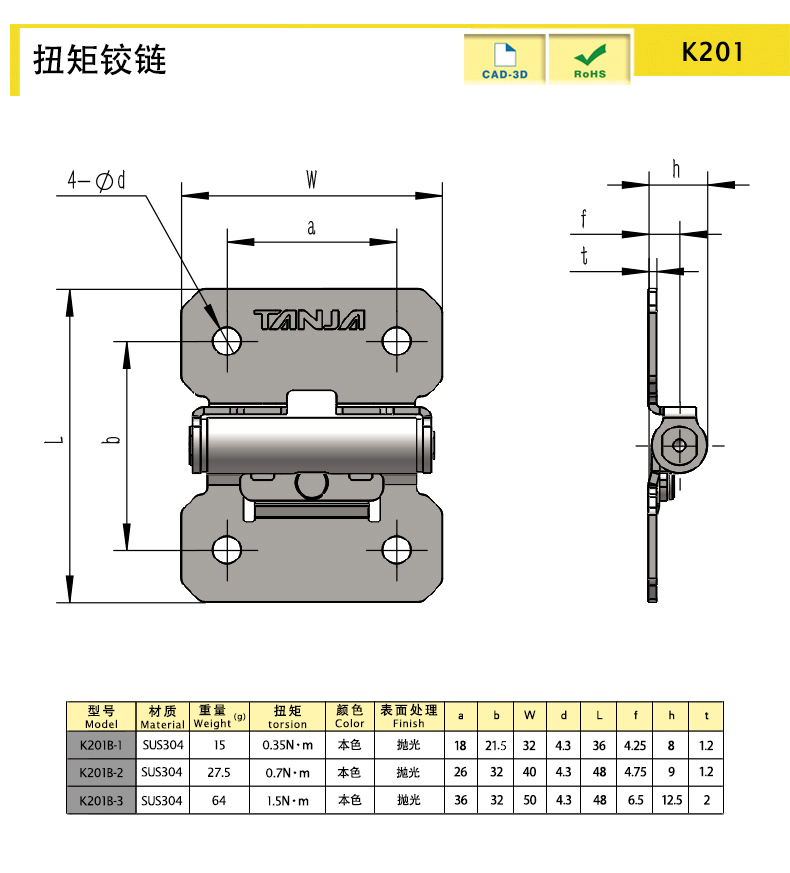

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function
K201B-1	SUS304	36	Silver	15	Fixed torque
K201B-2	SUS304	48	Silver	27.5	Fixed torque
K201B-3	SUS304	48	Silver	64	Fixed torque

characteristic

Any stop, open and close range of any Angle can be positioned to stop

It has passed 20,000 switch tests

Can be installed on aluminum frame

Available services

Installation: Exposed Mount

Product Name
Torque Hinge

More information

If you have more technical advice，Please call
0535-6217008-801
