Heavy Duty Hinge

K103

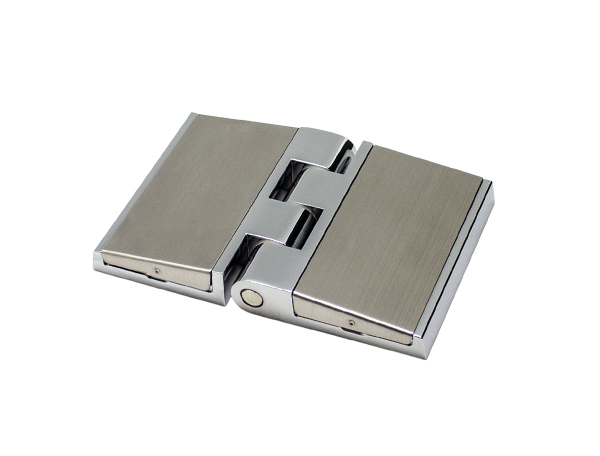

Heavy Duty Hinge

Bright chrome

application：Large case, oven, test box

catalogue CAD data

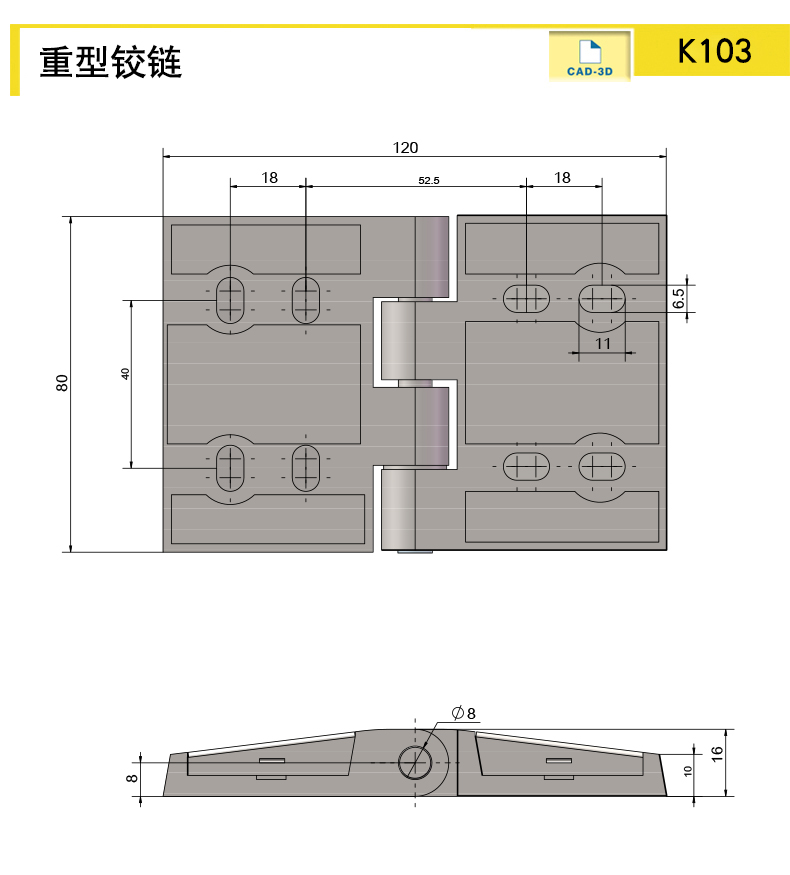

Product size diagram
Product size and properties
Model Number Material bottomLength（mm） bottomColor Weight (g) bottomFunction 3D DRAWINGS
K103 Zinc Alloy 120 Silver 464 Overload
characteristic
1.Two mounting holes, full horizontal hole and horizontal vertical hole
2.Maximum opening angle: 135 degrees
3.Stainless steel cover, no installation marks, beautiful and elegant
Available services
Installation : Exposed Mount
Must choose
Please select the required product catalogue
Interested product
Company name example)Yantai Tanja Precision Machinery Co Ltd
Name of department example)Development Department
Name
Address
Telephone example)0535-621-7008
Fax example)0535-2277515-803
Email

Similar product recommendation
Product Name
Heavy Duty Hinge
Free download of CAD drawings

More information

If you have more technical advice，Please call
0535-6217008-801
