Torque Hinge

K204

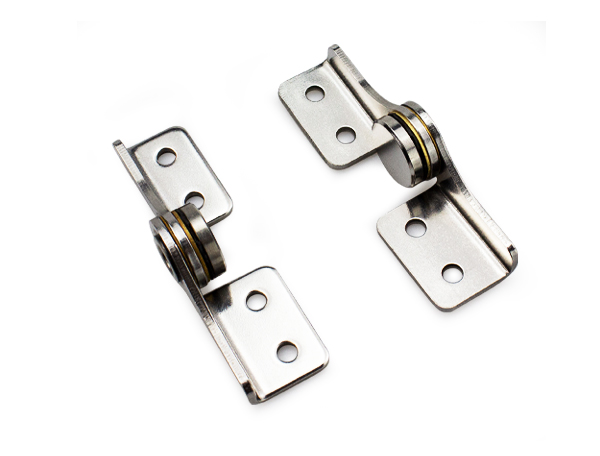

Torque Hinge

Stainless Steel Polished

application：LCD monitors and surveillance cameras

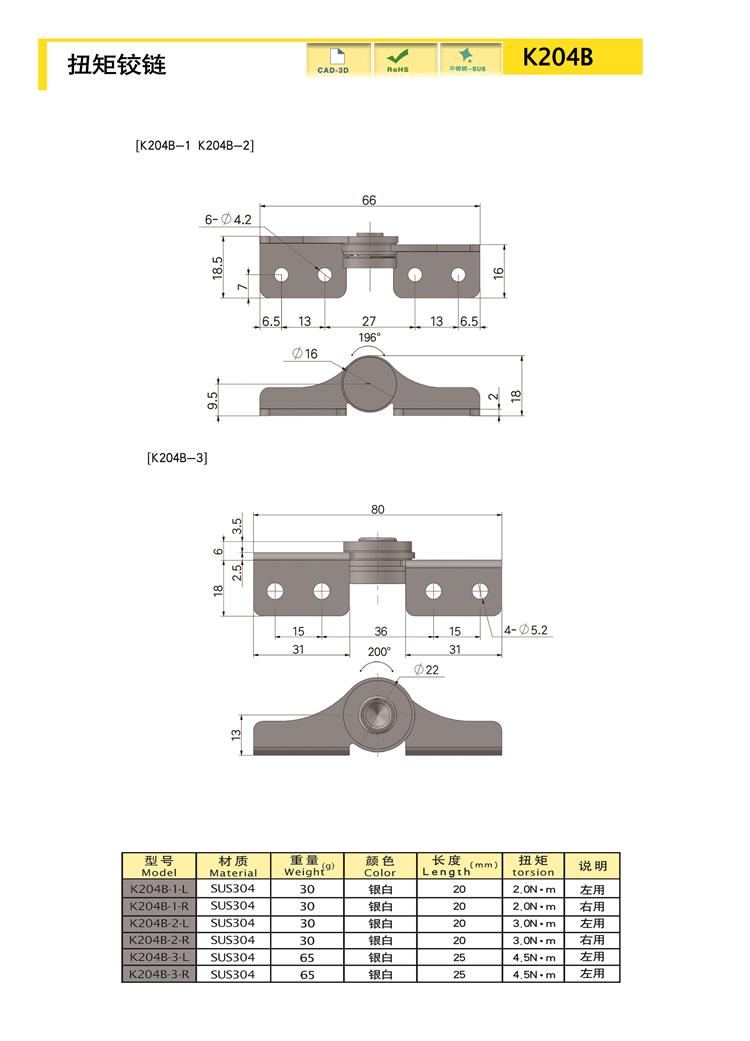

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function
K204B-1-L	SUS304	20	Silver	30	Fixed torque
K204B-1-R	SUS304	20	Silver	30	Fixed torque
K204B-2-L	SUS304	20	Silver	30	Fixed torque
K204B-2-R	SUS304	20	Silver	30	Fixed torque
K204B-3-L	SUS304	25	Silver	65	Fixed torque
K204B-3-R	SUS304	25	Silver	65	Fixed torque

characteristic

Arbitrary stop specifications that can maintain any angle
Constant reciprocating torque in the movable range.

Available services

Installation: Exposed mount

Product Name
Torque Hinge
