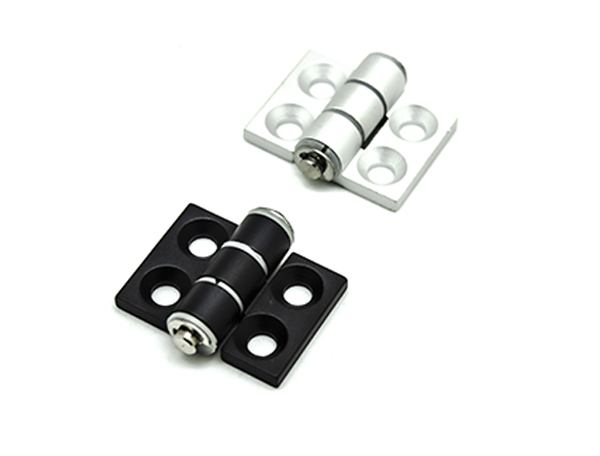

Damping hinge

K104

Damping hinge

Aluminum alloy anodized

application：Electrical cabinet, instrument cabinet, all kinds of automatic equipment

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function
K104-1B	Aluminum alloy	35.5	Black	19	Light damping
K104-1W	Aluminum alloy	35.5	Silver	19	Light damping
K104-2B	Aluminum alloy	48	Black	24	Light damping
K104-2W	Aluminum alloy	48	Silver	24	Light damping
K104-3B	Aluminum alloy	62	Black	27	Light damping
K104-3W	Aluminum alloy	62	Silver	27	Light damping
K104-4B	Aluminum alloy	80	Black	36	Light damping
K104-4W	Aluminum alloy	80	Silver	36	Light damping

characteristic

Quiet, light damping, lightweight, high strength

Can be installed on aluminum frame

Available services

Installation: Exposed Mount
