Torque Hinge

K215

Torque Hinge

1215

application：Folding lamp, makeup mirror, monitor stand, laptop

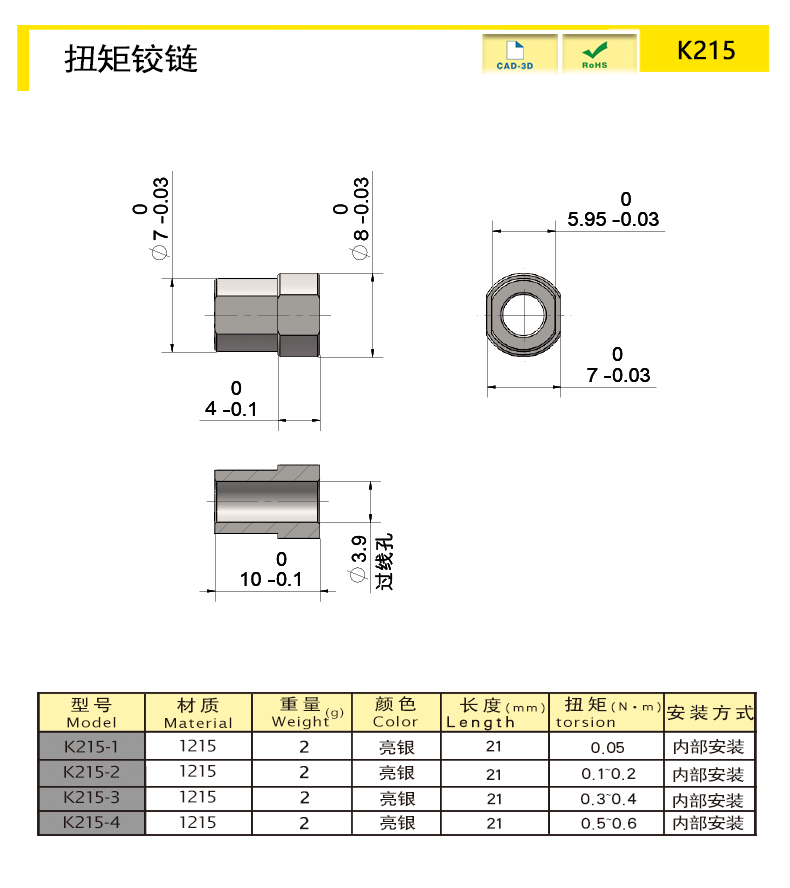

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function
K215-1	Carbon Steel	21	Silver	2	Fixed torque
K215-2	Carbon Steel	21	Silver	2	Fixed torque
K215-3	Carbon Steel	21	Silver	2	Fixed torque
K215-4	Carbon Steel	21	Silver	2	Fixed torque

characteristic

Any stop, 360°rotate at any angle can be positioned to stop.

Smooth turnover, simple structure/easy to assemble.

Service life: 5,000 times of opening and closing, torque attenuation 15%

Available services

Installation: Internal installation

Product Name
Torque Hinge
