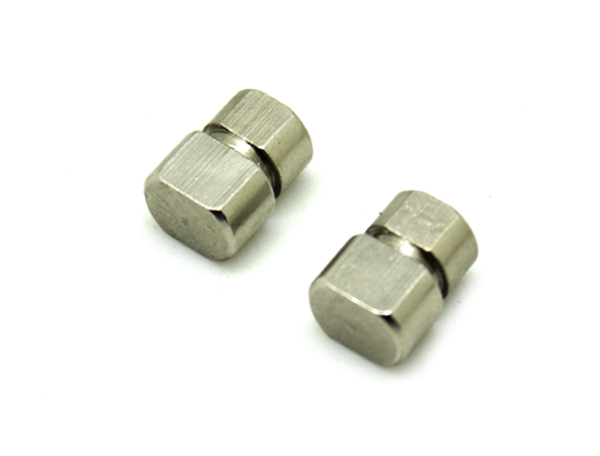

Torque Hinge

K219

Torque Hinge

1144（Carbon steel）

application：Folding lamp, makeup mirror, wireless charger and other equipment

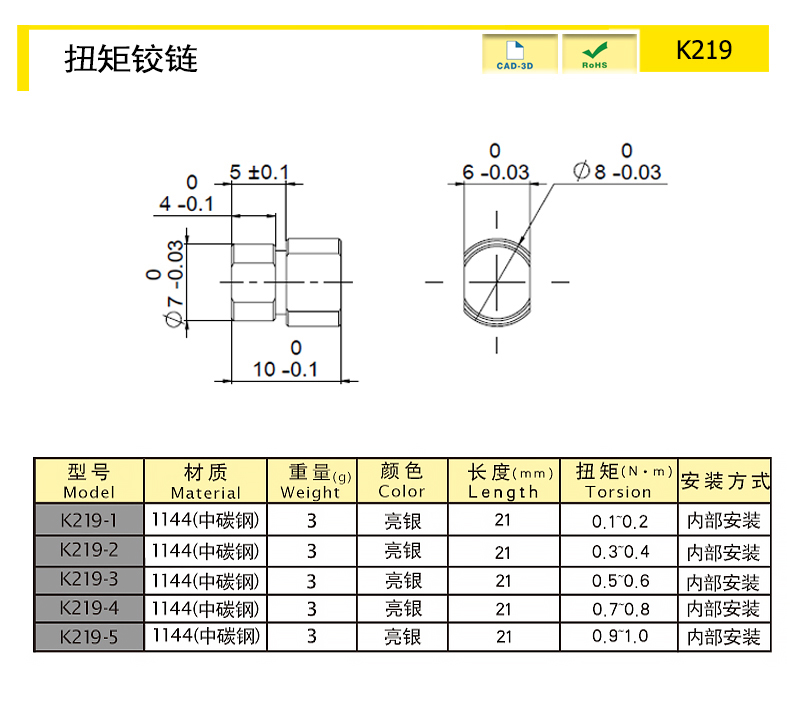

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function
K219-1	Carbon Steel	21	Silver	3	Fixed torque
K219-2	Carbon Steel	21	Silver	3	Fixed torque
K219-3	Carbon Steel	21	Silver	3	Fixed torque
K219-4	Carbon Steel	21	Silver	3	Fixed torque
K219-5	Carbon Steel	21	Silver	3	Fixed torque

characteristic

Any stop, 360°rotate at any angle can be positioned to stop.

Smooth turnover, simple structure/easy to assemble.

Service life: 20000 times of opening and closing, torque attenuation 20%

Available services

Installation: Internal installation

Product Name
Torque Hinge

More information

If you have more technical advice，Please call
0535-6217008-801
