Damping Hinge

K107

Damping Hinge

Aluminum alloy anodized

application：Electrical cabinet, instrument cabinet, all kinds of automatic equipment

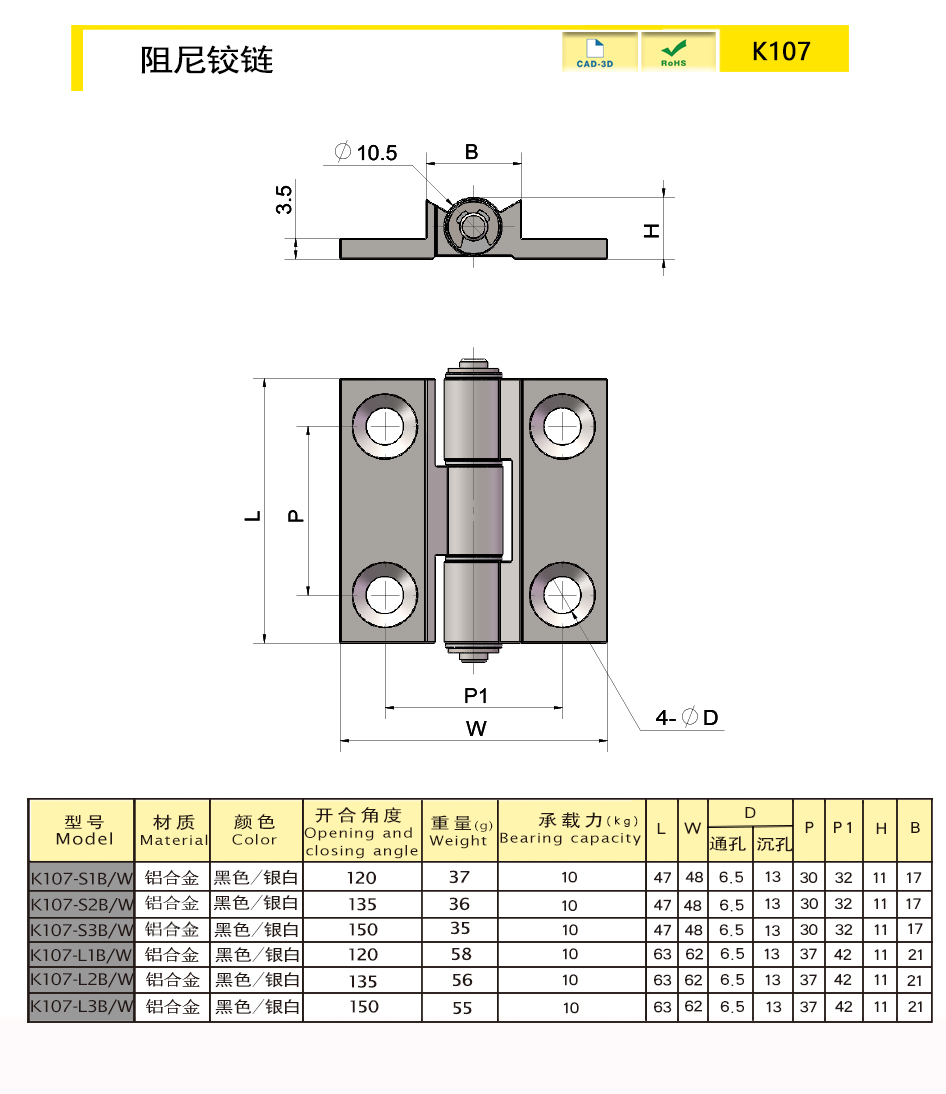

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function
K107-S1B\|W	Aluminum alloy	48	Black,Silver	37	Light damping
K107-S2B\|W	Aluminum alloy	48	Black,Silver	36	Light damping
K107-S3B\|W	Aluminum alloy	48	Black,Silver	35	Light damping
K107-L1B\|W	Aluminum alloy	63	Black,Silver	58	Light damping
K107-L2B\|W	Aluminum alloy	63	Black,Silver	56	Light damping
K107-L3B\|W	Aluminum alloy	63	Black,Silver	55	Light damping

characteristic

Quiet, light damping, lightweight, high strength

Can be installed on aluminum frame

Available services

Installation: Exposed Mount

Product Name
Damping Hinge

More information

If you have more technical advice，Please call
0535-6217008-801
