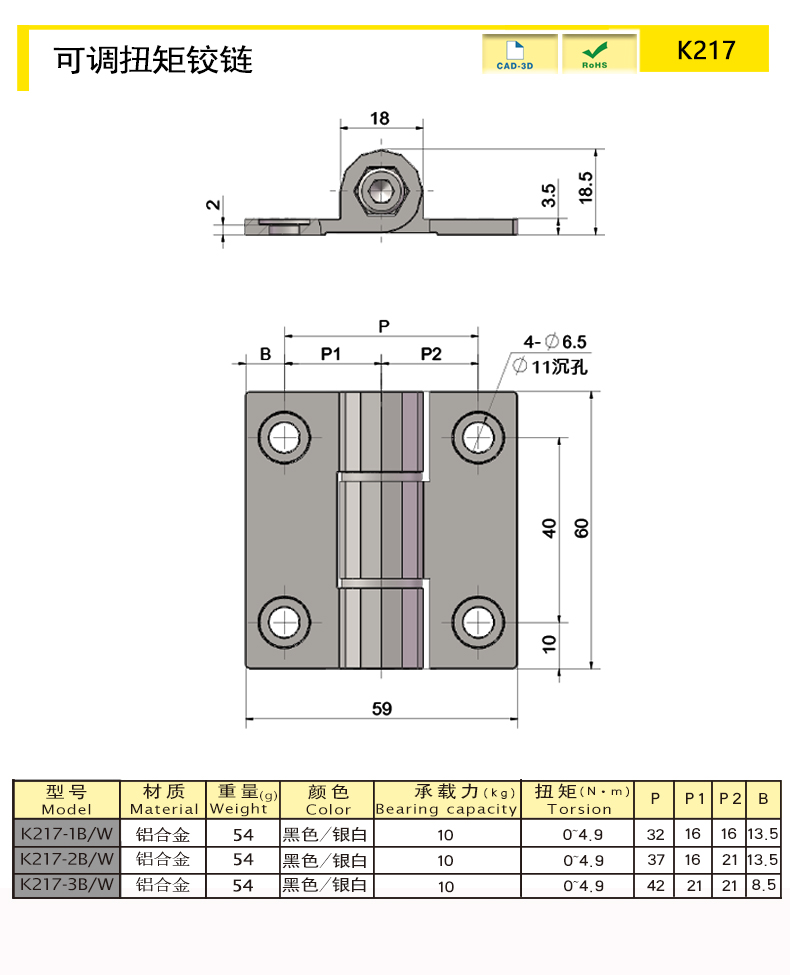

Product size diagram
Product size and properties
| Model Number | Material  | Length（mm） | Color | Weight (g) | Function | 3D DRAWINGS |
|---|---|---|---|---|---|---|
| K217-1B|W | Aluminum alloy | 60 | Black,Silver | 54 | Adjustable torque | |
| K217-2B|W | Aluminum alloy | 60 | Black,Silver | 54 | Adjustable torque | |
| K217-3B|W | Aluminum alloy | 60 | Black,Silver | 54 | Adjustable torque |
 |
characteristic
Lightweight, high strength, can be installed on aluminum frame
Arbitrary stop, can be positioned to stop at any angle within the opening and closing range
Service life: Passed 20,000 switch tests
Arbitrary stop, can be positioned to stop at any angle within the opening and closing range
Service life: Passed 20,000 switch tests
Available services
Installation: Exposed Mount
Product Name

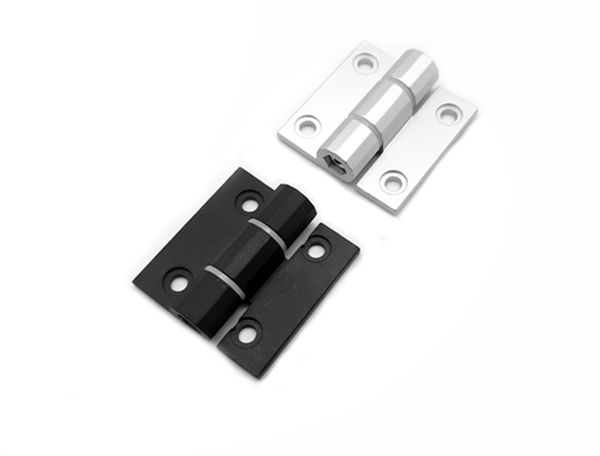

Adjustable Torque Hinge
Adjustable Torque Hinge
More information
If you have more technical advice，Please call0535-6217008-801
