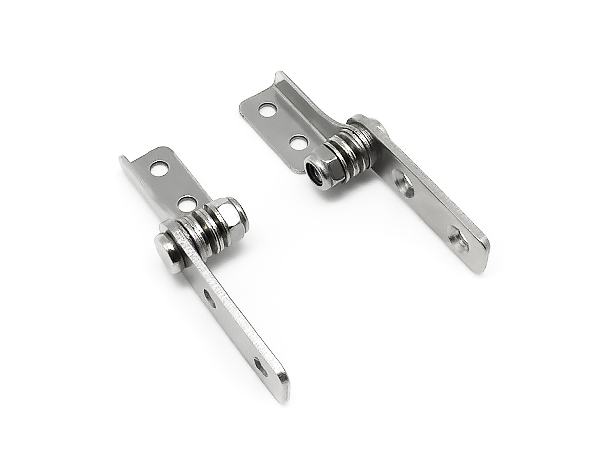

Adjustable Torque Hinge

K222

Stainless Steel Polished

application：LCD monitors and surveillance cameras, etc.

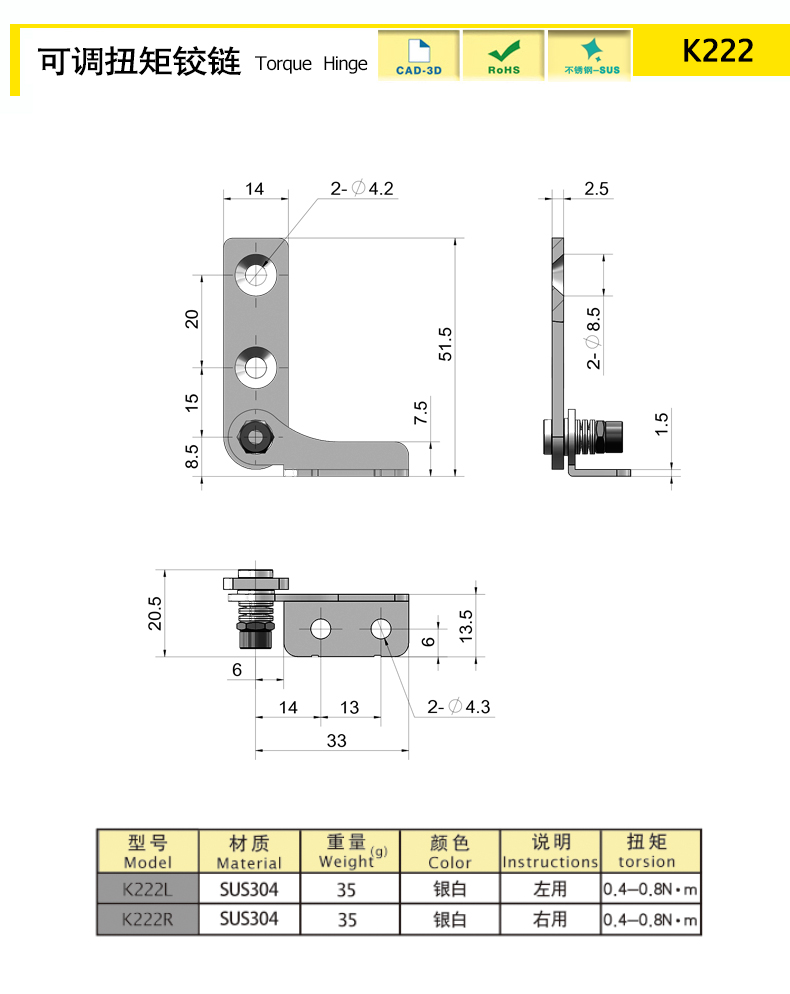

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function	3D DRAWINGS
K222L	SUS304	/	Silver	35	Adjustable torque
K222R	SUS304	/	Silver	35	Adjustable torque

characteristic

Any stop specification at any angle can be maintained, and the reciprocating torque within the movable range is constant.

Available services

Installation: Exposed Mount

Product Name
Adjustable Torque Hinge

More information

If you have more technical advice，Please call
0535-6217008-801
