Torque Hinge

K226

Torque Hinge

Zinc Alloy Die Casting

application：Network cabinet, automation equipment

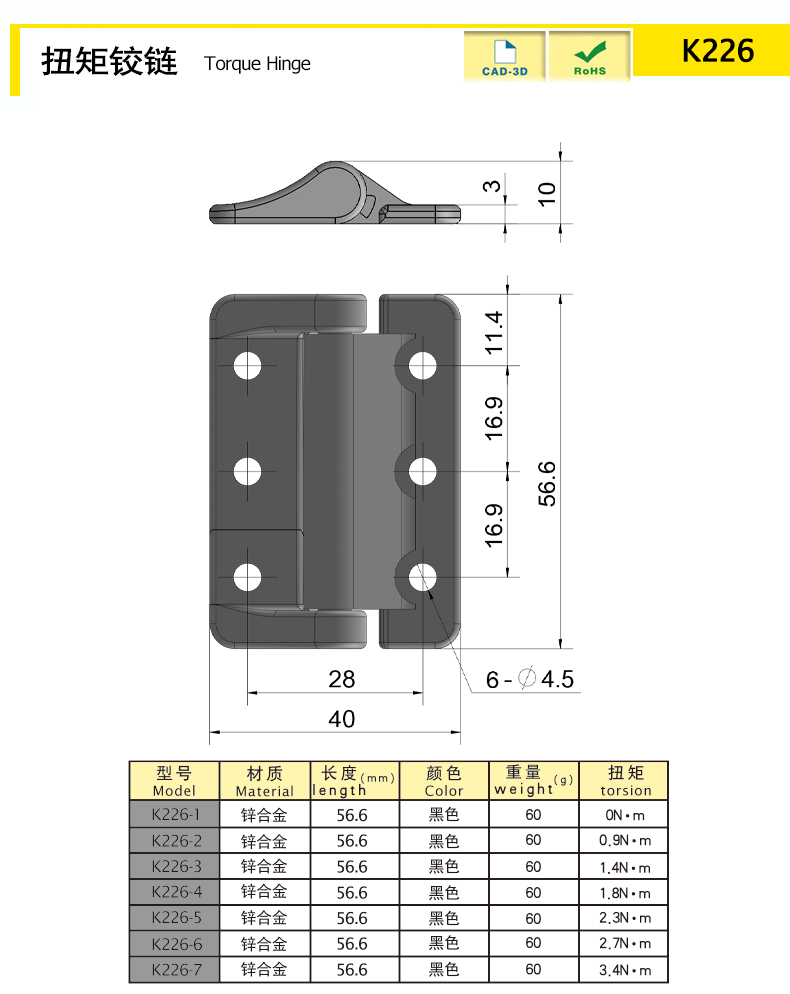

Product size diagram

Product size and properties

Model Number	Material	Length（mm）	Color	Weight (g)	Function
K226-1	Zinc Alloy	56.6	Black	60	Fixed torque
K226-2	Zinc Alloy	56.6	Black	60	Fixed torque
K226-3	Zinc Alloy	56.6	Black	60	Fixed torque
K226-4	Zinc Alloy	56.6	Black	60	Fixed torque
K226-5	Zinc Alloy	56.6	Black	60	Fixed torque
K226-6	Zinc Alloy	56.6	Black	60	Fixed torque

characteristic

Any stop, open and close range of any Angle can be positioned to stop.

Available services

Installation: Exposed Mount

Product Name
Torque Hinge

More information

If you have more technical advice，Please call
0535-6217008-801
