Coaxial Hinge

K138

Coaxial Hinge

Spray Coating/Brushed

application：Mechanical equipment, medical equipment, special vehicles, etc

catalogue CAD data

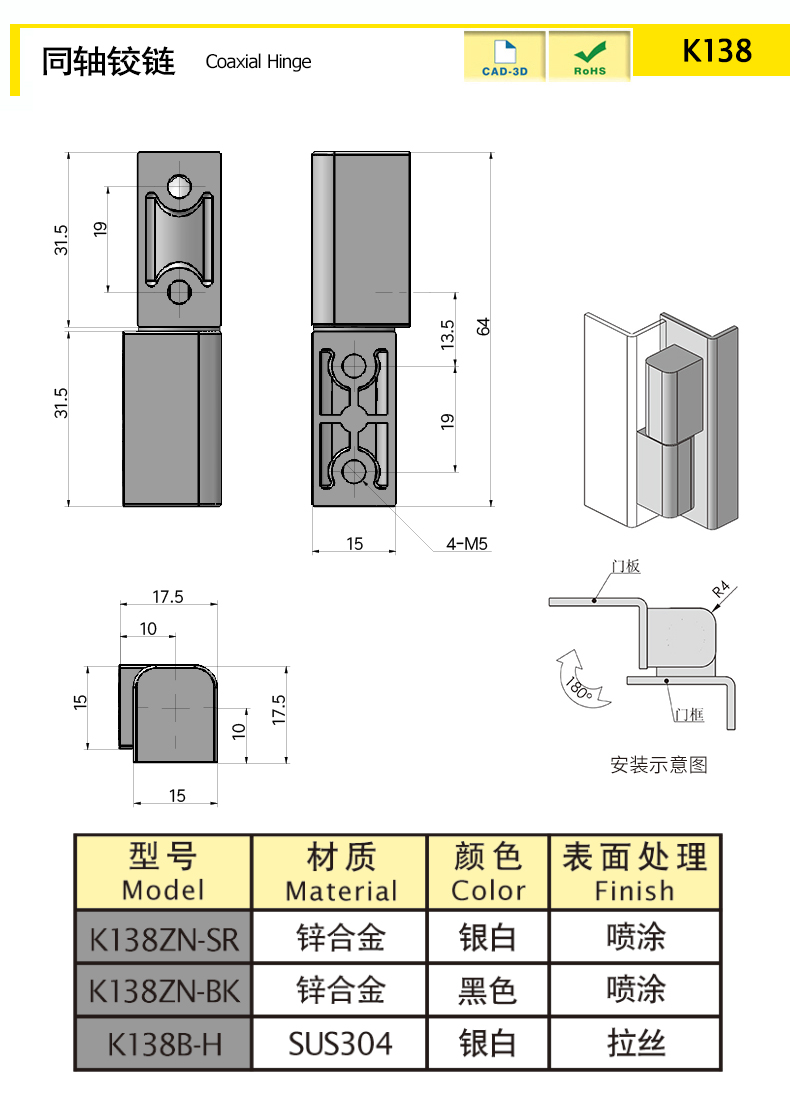

Product size diagram
Product size and properties
Model Number Material bottomLength（mm） bottomColor Weight (g) bottomFunction 3D DRAWINGS
K138ZN-SR Zinc Alloy 64 Silver / Detachable
K138ZN-BK Zinc Alloy 64 Black / Detachable
K138B-H SUS304 64 Silver / Detachable
characteristic
Maximum opening and closing angle: 180 °
Maximum static load
Radial load: zinc alloy 650N, stainless steel 1295N
Axial load: zinc alloy 1550N, stainless steel 2240N
Available services
Must choose
Please select the required product catalogue
Interested product
Company name example)Yantai Tanja Precision Machinery Co Ltd
Name of department example)Development Department
Name
Address
Telephone example)0535-621-7008
Fax example)0535-2277515-803
Email

Product Name
Coaxial Hinge
Free download of CAD drawings

More information

If you have more technical advice，Please call
0535-6217008-801
