Concealed Torque Hinge

K234B

Concealed Torque Hinge

Polished

application:Electrical cabinets, instrument cabinets, and various automatic equipment

catalogue CAD data

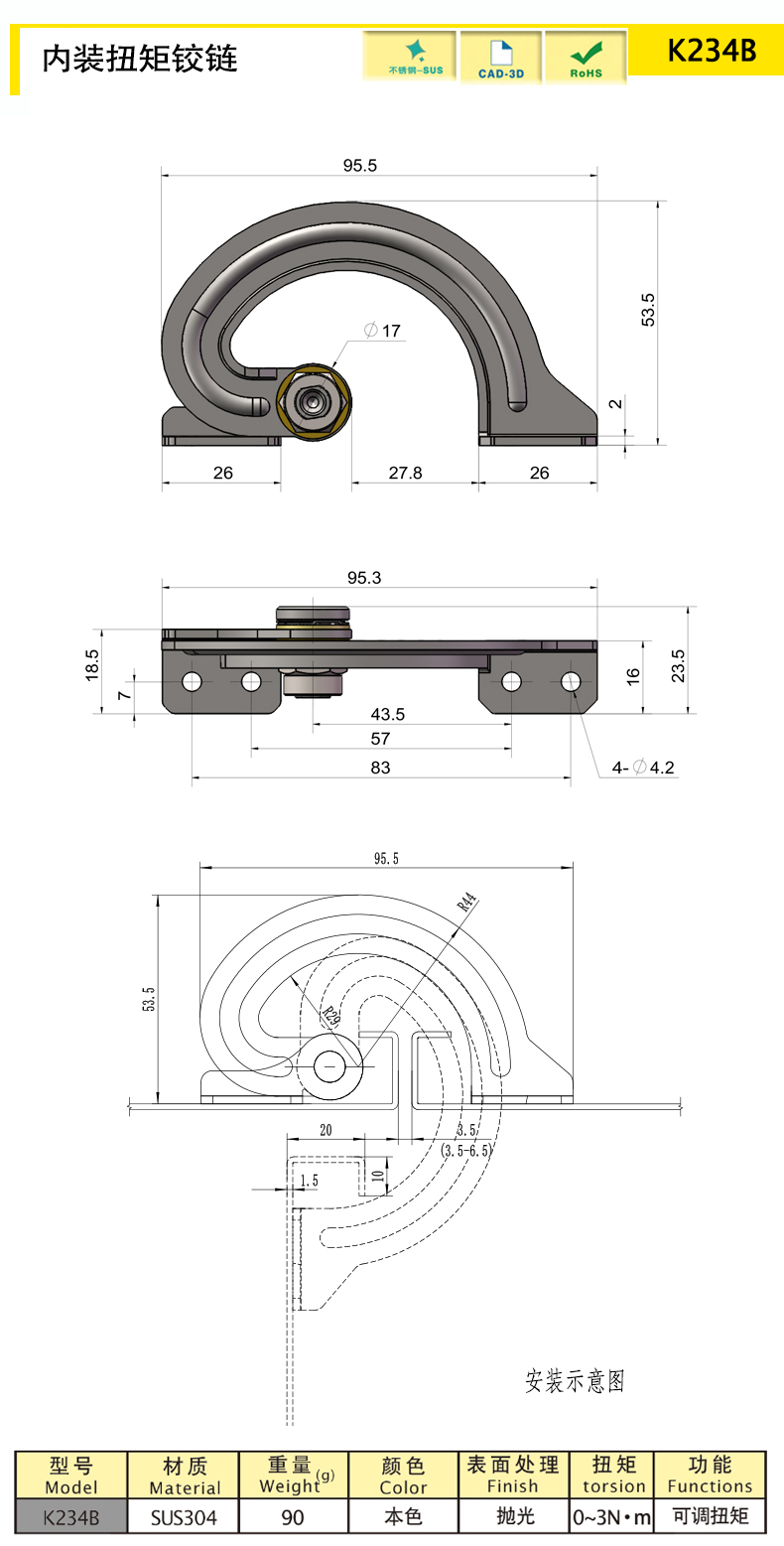

Product size diagram
Product size and properties
Model Number Material bottomLength(mm) bottomColor Weight (g) bottomFunction 3D DRAWINGS
K234B SUS304 95 Silver 90 Adjustable torque
characteristic
Hidden and invisible from the outside
Any stop, can be positioned at any angle within the opening and closing range, with a maximum opening and closing angle of 90 .
Adjustable torque, adjustable opening and closing torque for easy use.
Installation method: concealed installation.
